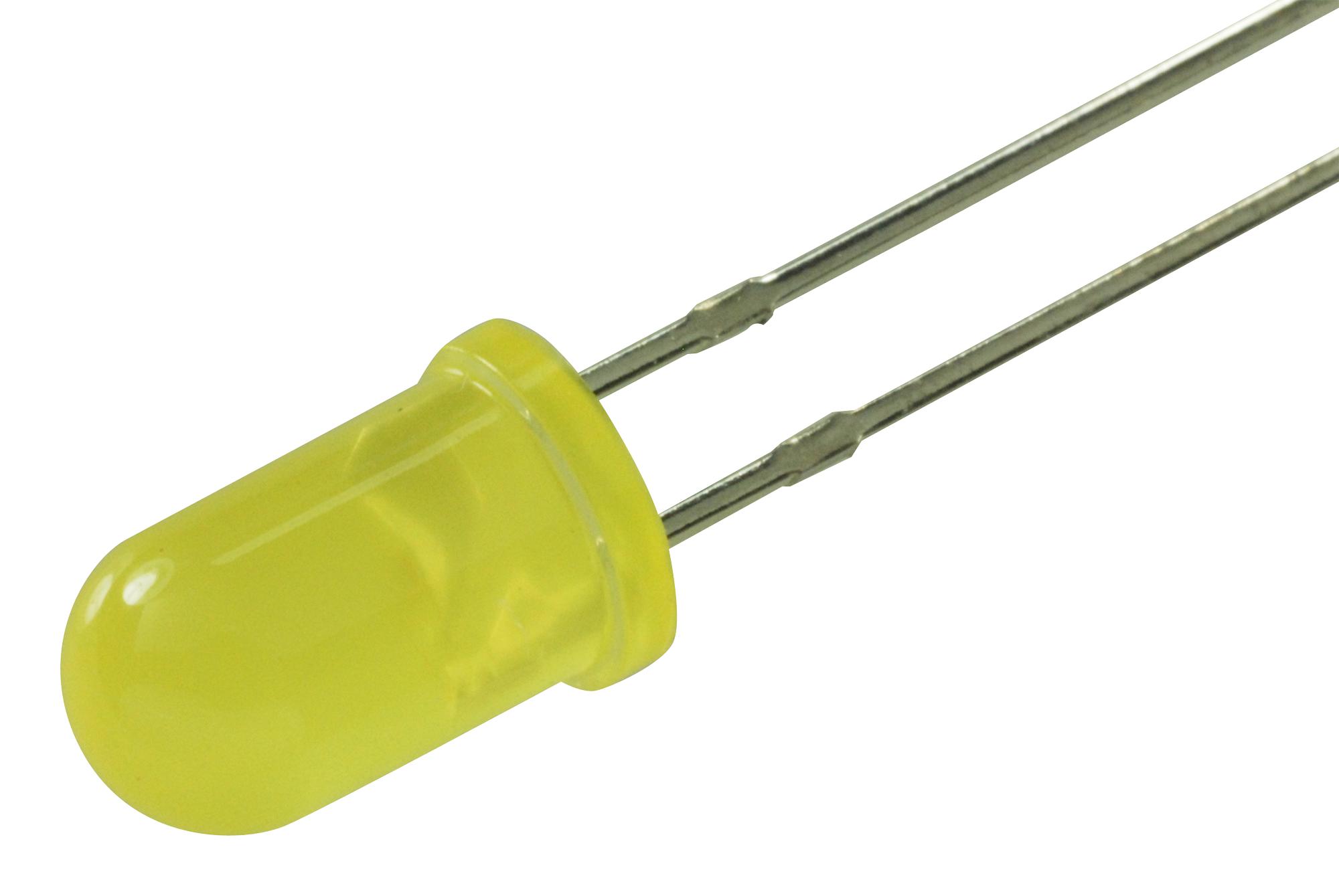

MULTICOMP PRO MCL053LYD Yellow LED
This yellow 5mm LED is ideal for LED lighting and consumer electronics, featuring GaAsP on GaP dice with a peak wavelength of 587nm. It offers a luminous intensity of up to 13 med at 20mA, a viewing angle of 145°, and operates within -40°C to +85°C. The LED complies with RoHS standards, has a forward voltage of around 1.6V to 1.9V, and supports a maximum peak current of 100mA at 1/10 duty cycle. Durable and suitable for various electronic projects, it provides reliable illumination with excellent spectral qualities.
MULTICOMP PRO MCL053LYD Yellow LED Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Yellow
- Peak Wavelength: 587nm
- Viewing Angle: 145°
- Luminous Intensity: 8 med (typical), 13 med (max) at 20mA
- Forward Voltage: 1.6V to 1.9V at 20mA
- Power Dissipation: up to 85mW
- Peak Forward Current: 100mA at 1/10 duty cycle
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds at 2.4mm from body
- RoHS Compliant
Buy the Multicom Series Yellow LED: MCLOS3LYD
Order the Multicom Series Yellow LED MCLOS3LYD online today for high-quality illumination in your electronic devices. Designed for durability and optimized brightness, this 5mm LED features a peak wavelength of 587nm, a viewing angle of 145°, and a luminous intensity up to 13 med at 20mA. It operates efficiently within -40°C to +85°C and complies with RoHS standards. Perfect for lighting applications, consumer electronics, and DIY projects, ensure your project has reliable and vibrant yellow lighting with fast delivery and excellent compatibility.
Get Multicom Series MCLOS3LYD yellow LED today—built for reliable illumination and long-lasting durability in electronic lighting projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053LYD?
You can click on the BUY or RFQ button to purchase MCL053LYD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053LYD?
You can download the MCL053LYD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053LYD?
MULTICOMP PRO
