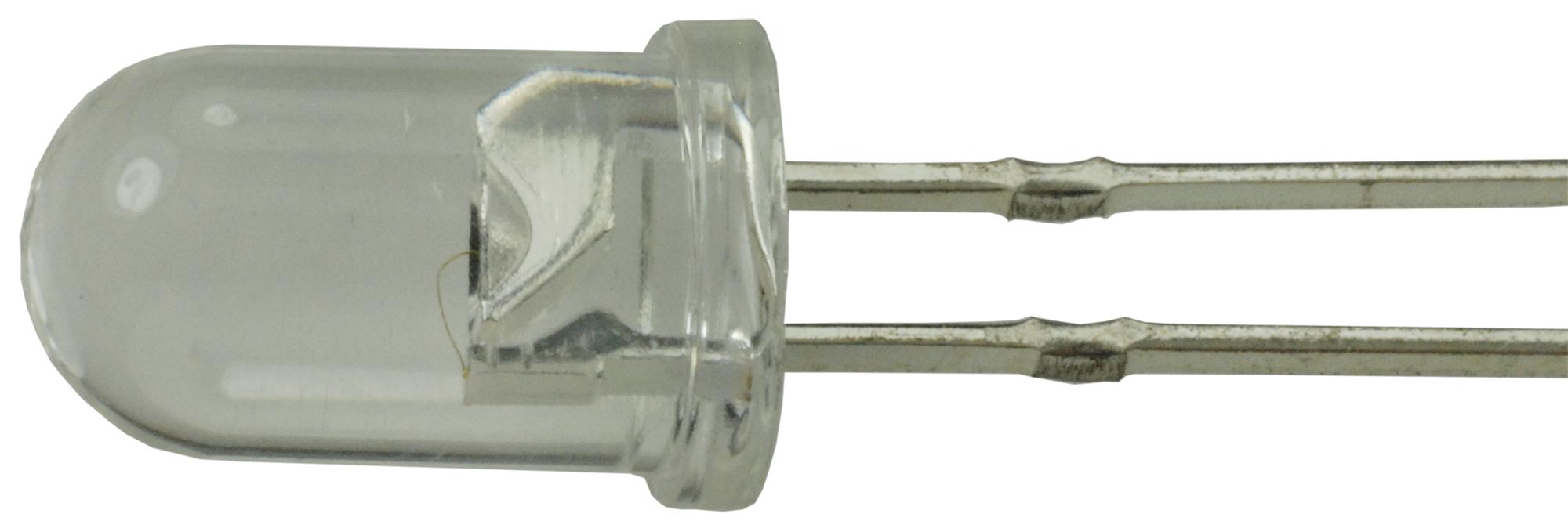

MULTICOMP PRO MCL053SGC super green LED
The MCL053SGC is a 5mm through-hole LED with a water-clear lens, utilizing AllnGaP die technology for vibrant super green emission at 570nm. Engineered for industrial environments, it withstands temperatures from -40°C to 85°C and operates with a forward voltage of 1.7V at 20mA. The LED features a viewing angle of 20°, and a luminous intensity ranging from 900 to 2,700 med. It supports a reverse voltage of 5V and a reverse current of 10μA, making it reliable for various technical applications, including indicator and illumination systems.
MULTICOMP PRO MCL053SGC super green LED Specifications:
- Lens Color: Water Clear
- Emitted Color: Super Green
- Peak Wavelength: 570nm
- Viewing Angle: 20°
- Luminous Intensity: 900 to 2,700 med at IF=20mA
- Forward Voltage: 1.7V (typical) at 20mA
- Peak Forward Current: 100mA
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Reverse Voltage: 5V
- Reverse Current: 10μA at Ve=5V
- Lead Soldering Temperature: 260°C for 5 seconds at 2.4mm from body
- Dimensions: 5mm diameter, 16° viewing angle
Buy the Multicomp Pro MCL053SGC – Reliable Super Green LED for Industrial Applications
Enhance your industrial indicator and illumination systems with the reliable MCL053SGC super green LED. Featuring AllnGaP technology, this 5mm through-hole LED offers high brightness and a water-clear lens for excellent visibility. Capable of operating in temperatures from -40°C to 85°C, it supports a reverse voltage of 5V and reverse current of 10μA. Its robust design ensures durability for various applications, including machinery, dashboards, and control panels. Order online now for quick delivery and superior performance.
Order your Multicomp Pro MCL053SGC today and give your projects the dependable quality they deserve with this high-brightness, water-clear LED solution.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053SGC?
You can click on the BUY or RFQ button to purchase MCL053SGC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053SGC?
You can download the MCL053SGC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053SGC?
MULTICOMP PRO
