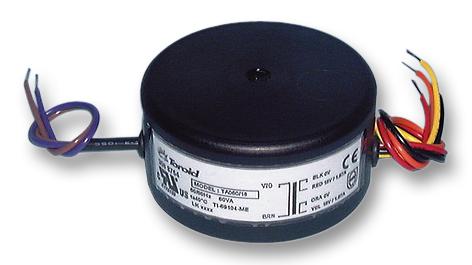

MULTICOMP-PRO MCFE05009 Toroidal Transformer
This toroidal transformer offers reliable power conversion with a 50VA capacity, providing 2 x 9V outputs suitable for electronic and industrial applications. Encapsulated for durability, it features high-quality winding wires, RoHS compliance, with primary and secondary leads rated at 600V/105°C. The transformer has a compact size with an outer diameter of 87.3mm, height of 41.7mm, and weighs approximately 0.84kg. It ensures low losses and high efficiency, making it ideal for sensitive equipment and precise power regulation.
MULTICOMP-PRO MCFE05009 Toroidal Transformer Specifications:
- Input Voltage: 230V ±10%, 50/60Hz
- Rated Power: 50VA
- Primary Voltage: 230V
- Secondary Voltages: 2 x 9V
- Output Current: 2.78A (on load), 10.2A (off load)
- Winding Wire: 22AWG
- Dimensions: Outer Diameter 87.3mm, Height 41.7mm
- Weight: 0.84kg
- Temperature Range: 105°C insulation system
- Leadout Insulation: Double insulated PVC sleeving, tinned ends
- Isolation Class: Class H
- RoHS compliant
- Termination: UL1015 style cable rated 600V/105°C
- Ambient Temperature Rating: 40°C
- Efficiency: Approximate 89%
- Iron Loss: 0.519 Watts
- Copper Loss: 5.92 Watts
- Temperature Rise: approx. 38°C
Buy the Buy Toroidal Transformer Part Number MCFE05009 Online
Enhance your electronic and industrial projects with this reliable 50VA toroidal transformer, featuring dual 9V outputs, encapsulated design, and high efficiency. Its compact size, durability, and RoHS compliance ensure optimal performance in various applications. Easy to install with UL-rated leads rated at 600V/105°C, this transformer is ideal for regulated power supplies, audio equipment, and precision electronics. Purchase this versatile component online today for quality and dependable power conversion in your device or system.
Buy Toroidal transformer MCFE05009 now and experience unmatched reliability and performance suitable for sensitive electronics and industrial applications.
