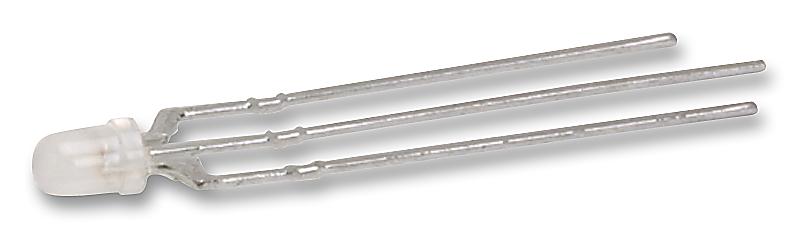

MULTICOMP-PRO MCL059AGW 5mm Diffused LED
The MCL059AGW are high-quality, 5mm through-hole diffused LED indicators featuring vibrant orange and green colors. Made with GaAsP on GaP die, these LEDs offer a peak wavelength of 635nm for orange and 568nm for green, with a viewing angle of 145°. They operate at a forward voltage of approximately 2V, with a maximum reverse voltage of 5V and reverse current of 10µA. Designed for durability, they withstand temperatures from -40°C to +85°C and are suitable for industrial, indicator, and illumination applications requiring reliable, long-lasting performance.
MULTICOMP-PRO MCL059AGW 5mm Diffused LED Specifications:
- Lens Color: White Diffused
- Peak Wavelength: 635nm (Orange), 568nm (Green)
- Viewing Angle: 145°
- Luminous Intensity: 15-16 mcd
- Forward Voltage: 2V (typical)
- Reverse Voltage: 5V
- Reverse Current: 10µA at 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature Range: 260°C for 5 seconds at 2-4.6mm from body
- Material: GaAsP on GaP die
- Emitter Colors: Orange, Green
- Peak Emission Wavelengths: 635 nm, 568 nm
- Maximum Power Dissipation: 85 mW
- Part Number: MCL059AGW
Buy the Buy Multicomp LED Part Number MCL059AGW Online
Purchase the high-quality 5mm diffused LED indicators from Multicomp Pro online. These LEDs feature vibrant orange and green colors, built with GaAsP on GaP die for optimal brightness and durability. Suitable for industrial and indicator applications, they offer a wide viewing angle of 145°, operate efficiently over temperatures from -40°C to +85°C, and have a forward voltage of approximately 2V. Easy to install, long-lasting, and RoHS compliant, these LEDs are ideal for reliable illumination in various settings.
Get Multicomp LED MCL059AGW today—designed for high brightness, durability, and reliable indicator performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL059AGW?
You can click on the BUY or RFQ button to purchase MCL059AGW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL059AGW?
You can download the MCL059AGW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL059AGW?
MULTICOMP-PRO
