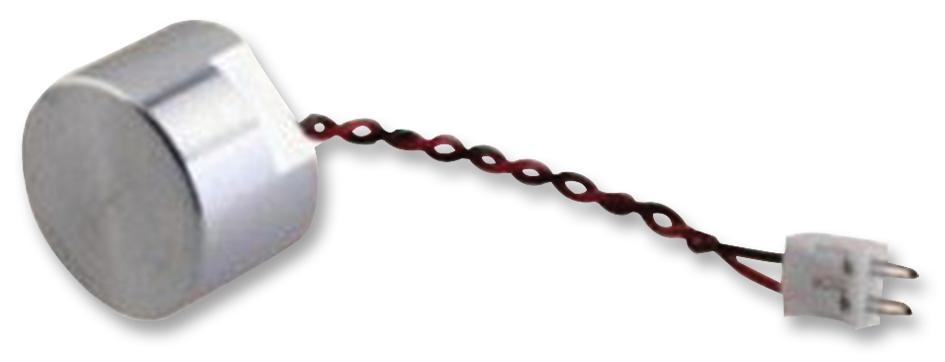

MULTICOMP-PRO MCUSD18A40S09RS30C Ultrasonic Sensor
This waterproof ultrasonic ceramic transducer operates at a center frequency of 40 kHz, ideal for ultrasonic ranging and parking sensors in automobiles. It features high sensitivity, a broad beam pattern of 110 x 50°, and a sound pressure level of 290 dB at 30cm/10V rms. Made with aluminium housing, it withstands temperatures from -40°C to 85°C, ensuring durability and reliability. Its low power consumption and corrosion-resistant construction make it suitable for demanding applications, providing precise and dependable ultrasonic signals.
MULTICOMP-PRO MCUSD18A40S09RS30C Ultrasonic Sensor Specifications:
- Part Number: MCUSD18A40S09RS-30C
- Center Frequency: 40 + 1 kHz
- Sound Pressure Level: 290 dB (30cm/10V rms)
- Sensitivity: >-90dB/V/pbar
- Beam Pattern: 110 x 50°
- Capacitance: 2000 pF ±25% at 1 kHz
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 85°C
- Housing Material: Aluminium
- Input Voltage: 160 Vp-p
- Construction: Water Proof
- Using Method: Dual Use
- Dimensions: Millimetres (Exact dimensions not specified in OCR, externally sourced approximate 18mm diameter, standard for ultrasonic sensors)
Buy the Buy multicomp Ultrasonic Transducer Part Number MCUSD18A40S09RS-30C Online
Purchase the multicomp ultrasonic sensor MCUSD18A40S09RS-30C online today to ensure precise ultrasonic detection for automotive parking and ranging. This waterproof, aluminium-encased transducer offers high sensitivity, a broad beam pattern, and excellent durability across a temperature range of -40°C to 85°C. Its compact design and low power consumption make it ideal for reliable, long-term use. Order now to equip your automotive or industrial system with a dependable ultrasonic sensing component that guarantees accurate and consistent performance in harsh environments.
Get multicomp MCUSD18A40S09RS-30C today—robust waterproof ultrasonic sensor designed for automotive ranging and parking applications with high reliability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCUSD18A40S09RS30C?
You can click on the BUY or RFQ button to purchase MCUSD18A40S09RS30C from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCUSD18A40S09RS30C?
You can download the MCUSD18A40S09RS30C datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCUSD18A40S09RS30C?
MULTICOMP-PRO
