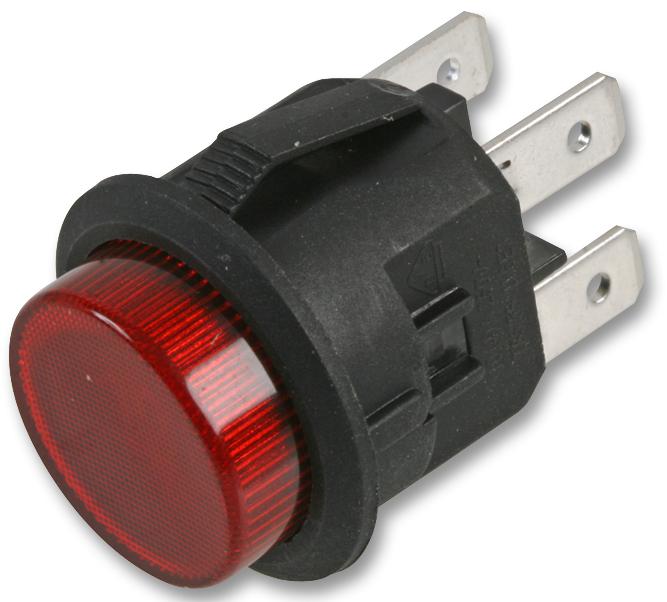

MULTICOMP-PRO MCLC2107KDET2B Illuminated Pushbutton Switch
This illuminated round pushbutton switch features DPST contact configuration with quick connect terminals, suitable for industrial automation and control panels. It offers a lamp voltage of 250VAC, operating temperature from -20°C to +85°C at terminal side, and up to 55°C on the actuating side. Made with robust polyamide housing and silver alloy contacts, it provides an electrical rating of 16A at 125/250V AC, with a lifespan of 10,000 cycles. The switch is UL and VDE approved, ensuring safety and durability in demanding environments. It includes a neon lamp indicator for operational status visibility.
MULTICOMP-PRO MCLC2107KDET2B Illuminated Pushbutton Switch Specifications:
- Contact Configuration: DPST
- Actuator: Illuminated, Round
- Terminal: Quick Connect Tab
- Lamp Voltage: 250VAC
- Ambient Temperature: Terminal Side: -20°C to +85°C, Actuating Side: 20°C to +55°C
- Storage Temperature: -30°C to +85°C
- Atmospheric Humidity: 85% Max.
- Actuating Force: 3~8N
- Temperature Rise: 30°C Max. @ Terminal
- Electrical Rating: 16A, 125/250V AC
- Electrical Life Endurance: 10,000 cycles
- Contact Resistance: <20mΩ
- Insulation Resistance: >1000MΩ
- Dielectric Strength: >1250V/minute
- Material Housing: Polyamide 6.6, Black, Contacts: Silver Alloy
- Terminal: Brass, Silver Plated
- Spring: SWC (Chromated Steel Wire)
- Bracket: Polyamide 6.6
Buy the Multicomp Pro MCLC2107KDET2B – Reliable Illuminated Pushbutton for Industrial Applications
Order the illuminated round pushbutton switch online today to ensure reliable operation in industrial control panels. This DPST switch features quick connect terminals, a 250VAC lamp voltage, and robust polyamide housing. Approved by UL and VDE, it withstands demanding environments with an ambient temperature range of -20°C to +85°C. Its durable construction and long electrical life make it ideal for automation, safety indicators, and machinery controls. Purchase now for quality, safety, and dependable performance in your projects.
Get Multicomp Pro MCLC2107KDET2B today—built for precision, visibility, and long-lasting durability in control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCLC2107KDET2B?
You can click on the BUY or RFQ button to purchase MCLC2107KDET2B from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCLC2107KDET2B?
You can download the MCLC2107KDET2B datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCLC2107KDET2B?
MULTICOMP-PRO
