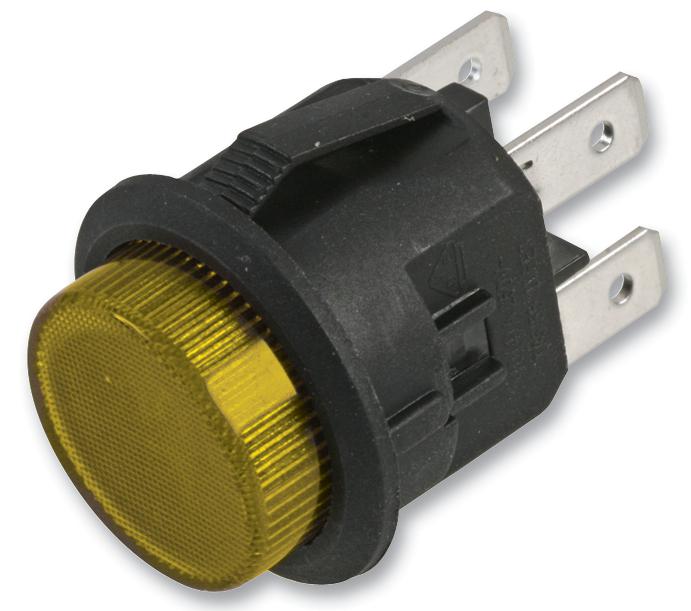

MULTICOMP PRO MCLC2107KYET2B Illuminated Pushbutton Switch
This illuminated round pushbutton switch features a DPST contact configuration with quick connect tabs, designed for industrial control panels. It has a choice of green, red, or yellow lamps operating at 250VAC, with an actuation force of 3-8N and a temperature rise of up to 55°C under load. Made from durable polyamide housing, with silver alloy contacts and brass terminals, it offers UL and VDE safety approval, a maximum electrical rating of 16A at 125/250V AC, and excellent insulation resistance for reliable operation in industrial environments.
MULTICOMP PRO MCLC2107KYET2B Illuminated Pushbutton Switch Specifications:
- Contact Configuration: DPST
- Actuator: Illuminated, Round
- Terminal: Quick Connect Tab
- Lamp Voltage: 250VAC
- Ambient Temperature: Terminal Side -20°C to +85°C, Actuating Side 20°C to +55°C
- Storage Temperature: -30°C to +85°C
- Atmospheric Humidity: 85% Max.
- Actuating Force: 3~8N
- Temperature Rise: 30°C Max. @ Terminal
- Electrical Rating: 16A, 125V/250V AC
- Electrical Life: 10,000 cycles
- Contact Resistance: <20mΩ
- Insulation Resistance: >1000MΩ
- Dielectric Strength: >1250V/minute
- Material: Housing - Polyamide 6.6, Black; Contacts - Silver Alloy; Terminal - Brass, Silver Plated; Spring - Chromated Steel Wire; Bracket - Polyamide 6.6
- Push Force for TABS: 26kg
- Pull Force for TABS: 210kg
Buy the Multicomp Pro MCLC2107KYET2B – Reliable Illuminated Pushbutton Switch for Industrial Applications
Purchase the Multicomp Pro MCLC2107KYET2B illuminated pushbutton switch online today and ensure your industrial control systems have dependable, UL and VDE approved components. Its robust design features a durable polyamide housing, quick connect terminals, and a bright 250VAC lamp that provides clear visual feedback in demanding environments. Suitable for various control applications, this switch offers excellent electrical ratings, long cycle life, and high resistance to temperature and humidity, making it the ideal choice for industrial automation and control projects.
Order your Multicomp Pro MCLC2107KYET2B illuminated round pushbutton switch today and enhance your control panel reliability with this industrial-grade component.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCLC2107KYET2B?
You can click on the BUY or RFQ button to purchase MCLC2107KYET2B from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCLC2107KYET2B?
You can download the MCLC2107KYET2B datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCLC2107KYET2B?
MULTICOMP PRO
