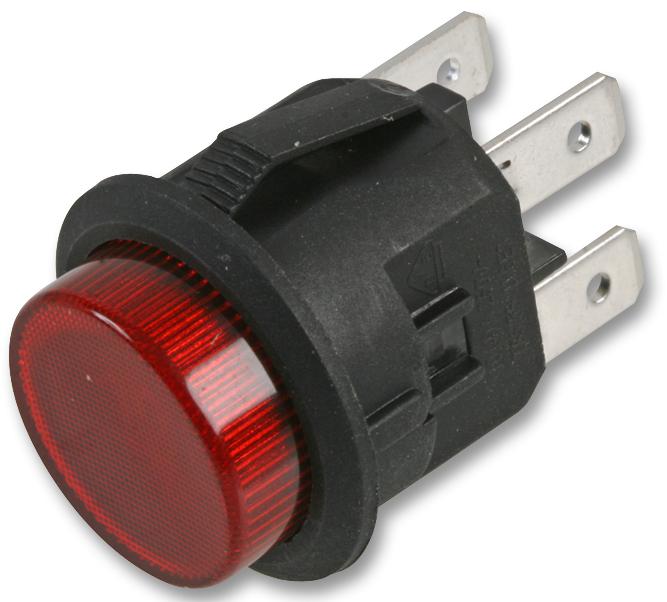

MULTICOMP-PRO MCLC2108KDET2B Round Pushbutton Switch
This illuminated round pushbutton switch features a durable polyamide housing with silver alloy contacts and brass terminals, rated for 10A at 250V AC. It has a DPST contact configuration, quick connect tabs, and an LED lamp voltage of 250VAC. Designed for industrial control applications, it operates within -20°C to +85°C on the terminal side and 20°C to +55°C on the actuating side, with an ambient humidity up to 85%. The switch endures an electrical life of 26,000 cycles with UL and VDE safety approval, suitable for demanding environments requiring reliable performance.
MULTICOMP-PRO MCLC2108KDET2B Round Pushbutton Switch Specifications:
- Contact Configuration: DPST
- Actuator: Illuminated, Round
- Terminal: Quick Connect Tab
- Lamp Voltage: 250VAC
- Ambient Temperature: Terminal Side -20°C to +85°C, Actuating Side 20°C to +55°C
- Storage Temperature: -30°C to +85°C
- Atmospheric Humidity: 85% Max
- Actuating Force: 3~8N
- Temperature Rise: 30°C Max. @ Terminal
- Safety Approval: UL, VDE
- Electrical Rating: 10A (4A), 250V AC
- Electrical Life Endurance: 26,000 times
- Contact Resistance: <20mΩ
- Insulation Resistance: >1000MΩ
- Dielectric Strength: >1500V/minute
- Material Housing: Polyamide 6.6, Black
- Contacts: Silver Alloy
- Terminal: Brass, Silver Plated
- Spring: Chromated Steel Wire
- Dimensions: Compatible with panel cut out 20.5 mm, with actuator size 0.7~1.25 mm
Buy the MultiComp Series Illuminated Round Pushbutton Switch: MCLC2108KDET2B
Order the MultiComp Series illuminated round pushbutton switch MCLC2108KDET2B online today. Enjoy fast delivery and ensure your control panels are equipped with durable, UL and VDE certified switches rated for 10A at 250V AC. Perfect for industrial automation, these switches feature a robust polyamide housing, silver alloy contacts, and quick connect terminals for easy installation. Reliable in various environmental conditions, they are ideal for demanding control applications requiring consistent performance and safety compliance.
Buy MultiComp Series MCLC2108KDET2B now and experience unmatched reliability and performance in industrial controls and automation systems.
