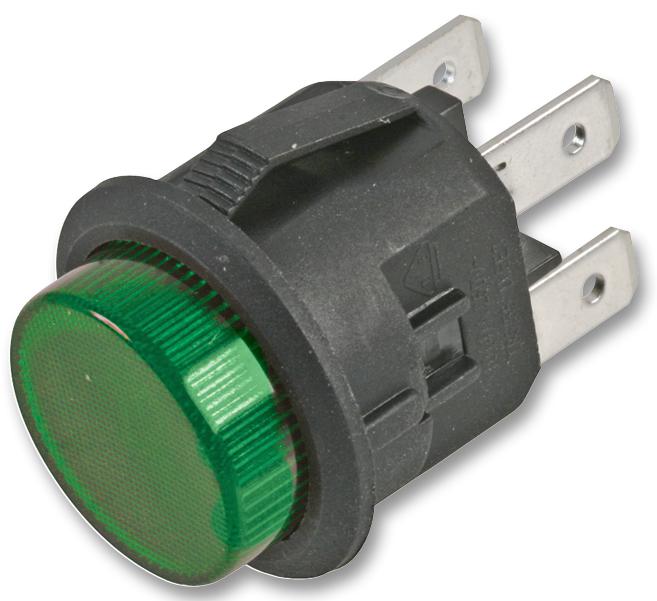

MULTICOMP-PRO MCLC2108KMET2B Illuminated Pushbutton Switch
This illuminated round pushbutton switch features a DPST configuration with a quick connect tab for easy installation. It is designed for control panels requiring reliable operation with an integrated neon lamp, rated at 250VAC. Constructed with a durable polyamide housing and silver alloy contacts, it withstands high ambient temperatures and humidity, making it suitable for industrial automation and machinery. The switch supports multiple circuit options, housing up to 26,000 electrical life cycles, and complies with UL and VDE safety standards, ensuring safety and long-term dependable performance.
MULTICOMP-PRO MCLC2108KMET2B Illuminated Pushbutton Switch Specifications:
- Contact Configuration: DPST
- Actuator: Illuminated, Round
- Terminal: Quick Connect Tab
- Lamp Voltage: 250VAC
- Ambient Temperature: Terminal Side: -20°C to +85°C, Actuating Side: 20°C to +55°C
- Storage Temperature: -30°C to +85°C
- Atmospheric Humidity: Max 85%
- Actuating Force: 3~8N
- Temperature Rise: Max 30°C @ Terminal
- Electrical Rating: 10A (4A), 250V AC (VDE); 16A, 125V/250V AC (UL)
- Electrical Life Endurance: 26,000 cycles
- Contact Resistance: <20mΩ
- Insulation Resistance: >1000MΩ
- Dielectric Strength: >1500V/min (VDE); >1250V/min (UL)
- Material: Housing Polyamide 6.6 black, Contacts Silver Alloy, Terminal Brass, Silver Plated
- Spring: SWC (Chromated Steel Wire)
- Movable Arm: Brass
- Bracket: Polyamide 6.6
- Push Force: 1200g +300g
- Ambient Temperature for Terminals: -20°C to +85°C
- Actuating Side Temperature: 20°C to +55°C
Buy the Multicomp Pro Series Illuminated Round Pushbutton: MCLC2108-K-M-ET-2B
Secure your reliable switching solution today by purchasing this illuminated pushbutton switch online. Designed with durable polyamide housing and silver alloy contacts, it handles high voltages and harsh environments. With UL and VDE safety approvals, it ensures safety and durability in industrial applications. Its quick connect tabs facilitate fast installation, while the neon lamp provides easy visual indication of status. Ideal for automation systems, control panels, and machinery requiring high electrical life endurance, this switch offers robust performance and long-lasting reliability for your projects.
Order your Multicomp Pro Series MCLC2108-K-M-ET-2B illuminated round pushbutton switch today and enhance your control panel with reliable, high-quality switching solutions.
