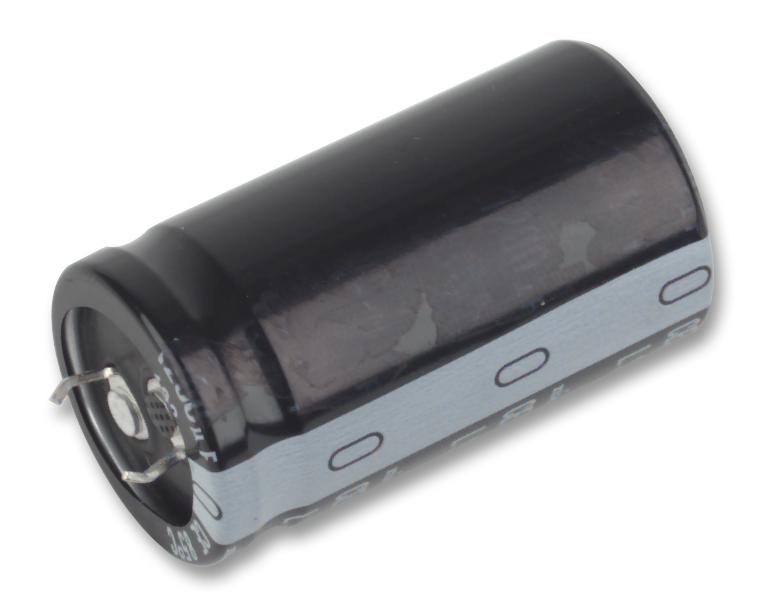

MULTICOMP PRO MCLPR25V109M30X25 Electrolytic Capacitor
The electrolytic capacitor from the MCLPR series is a large-sized, high-capacity component with specially designed terminals for direct PCB soldering without holders. Suitable for various electronic applications, it operates well within -40°C to +85°C, with voltage ratings from 10V to 100V DC and capacitance from 470UF up to 68,000UF. These capacitors feature a +20% tolerance at +20°C and 120Hz, low leakage current, and stable impedance ratio at low temperatures. Ideal for power supply filtering, energy storage, and smoothing tasks in industrial and consumer electronics. They are designed for durability and reliable performance under high-temperature conditions, with detailed physical dimensions matching case sizes 22x25mm to 35x62mm.
MULTICOMP PRO MCLPR25V109M30X25 Electrolytic Capacitor Specifications:
- Operating Temperature Range: -40°C to +85°C
- Rated Working Voltage Range: 10V to 100V DC
- Nominal Capacitance Range: 470UF to 68,000UF
- Capacitance Tolerance: +20% at +20°C, 120Hz
- Leakage Current: | = 0.02CV or 3,000μA max. (whichever is greater after 3 mins)
- Dissipation Factor:tan δ at 120Hz and +20°C varies with capacitance
- Impedance Ratio at Low Temp: Z-25°C/Z -20°C: 3 max, Z-40°C/Z -20°C: 12 max
- Ripple Current Correction: Frequencies from 60Hz to 100kHz with respective correction factors
- High Temperature Testing: After 2,000 hours at +85°C, leakage current, capacitance change within +20%, and tan δ within 200% of initial
- Shelf Life: Storage for 500 hours at +85°C, post-test limits same as high temperature
- Physical Dimensions: Sizes range from 22x25mm to 35x62mm, with specific case sizes and ripple current ratings specified for each
Buy the multicomp Series MCLPR 25V109M30X25: High-Voltage Electrolytic Capacitor
Enhance your electronic designs with the reliable multicomp electrolytic capacitor from the MCLPR series. Designed for excellent performance at temperatures from -40°C to +85°C, this high-capacity component supports voltage ratings up to 100V and capacitance from 470UF to 68,000UF. Its durable construction ensures stability under high-temperature conditions, making it ideal for power supplies, filtering, and energy storage. Easy to solder directly onto printed circuit boards with specially designed terminals, it guarantees long-lasting, dependable operation in industrial and consumer applications.
Order your multicomp Series 25V109M30X25 high-capacity electrolytic capacitor today and ensure reliable power filtering and energy storage in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCLPR25V109M30X25?
You can click on the BUY or RFQ button to purchase MCLPR25V109M30X25 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCLPR25V109M30X25?
You can download the MCLPR25V109M30X25 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCLPR25V109M30X25?
MULTICOMP PRO
