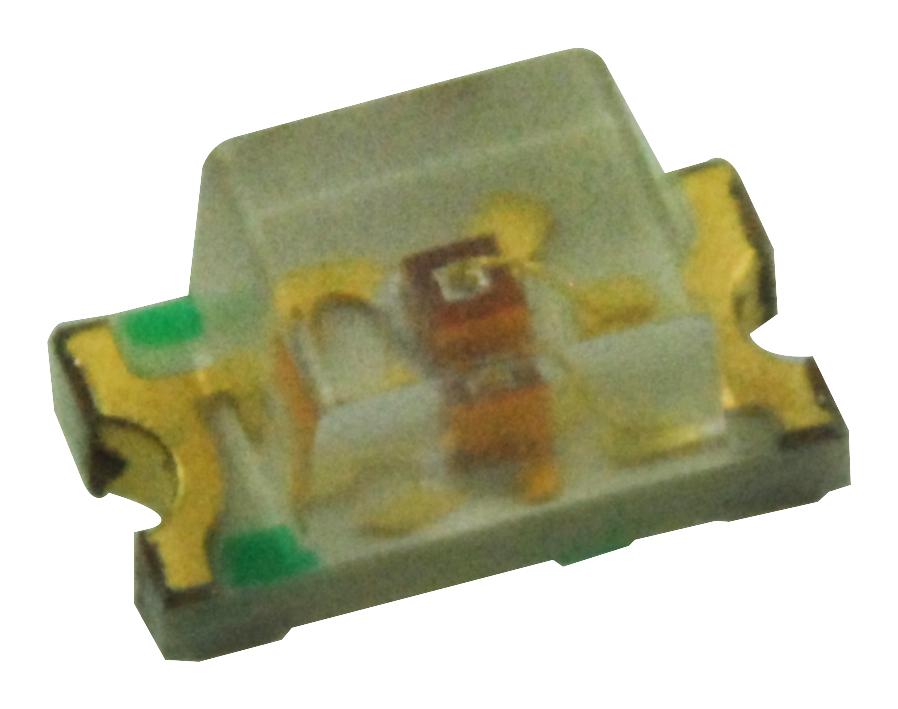

MULTICOMP PRO MCLS290YC Yellow SMD LED
The MCL-S290YC is a yellow SMD LED with a water-clear epoxy lens, manufactured with GaAsP on GaP die technology in a compact 0603 size. It operates at 5V reverse voltage with a reverse current of 10μA and features high luminous intensity with a rainbow of spectral data. Suitable for industrial and medical applications, it withstands temperatures from -40°C to 85°C. Ideal for precise electronic lighting solutions, it offers reliable performance, efficient illumination, and ease of surface mounting, making it essential for modern electronic designs requiring bright yellow indicator signals.
MULTICOMP PRO MCLS290YC Yellow SMD LED Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Yellow
- Peak Wavelength: 587nm
- Viewing Angle: 140°
- Luminous Intensity: 10 med (typical)
- Reverse Voltage: 5V
- Reverse Current: 10μA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 Seconds at 2-4.6mm from body
- Forward Voltage: 1.7V (typical)
- Peak Emission Wavelength: 587nm
- Power Dissipation: up to 85mW
- Maximum Peak Forward Current: 100mA (duty cycle 1/10 at 1kHz)
- Recommended Operating Current: 20mA
Buy the Multicomp Series 0603 Yellow LED: MCLS290YC
Order the high-quality Multicomp Series 0603 Yellow LED MCLS290YC online today to ensure reliable, bright, and efficient illumination for industrial, medical, and electronic signaling applications. Designed with GaAsP on GaP die technology, this yellow SMD LED offers a 587nm peak wavelength, 140° viewing angle, and a compact 0603 size perfect for surface-mount assemblies. Its robust construction withstands temperatures from -40°C to 85°C, guaranteeing durability and efficient operation in demanding environments. Purchase online now for fast delivery and superior performance in your electronic projects.
Get Multicomp Series 0603 Yellow LED MCLS290YC today—built for precision illumination and long-lasting durability.
