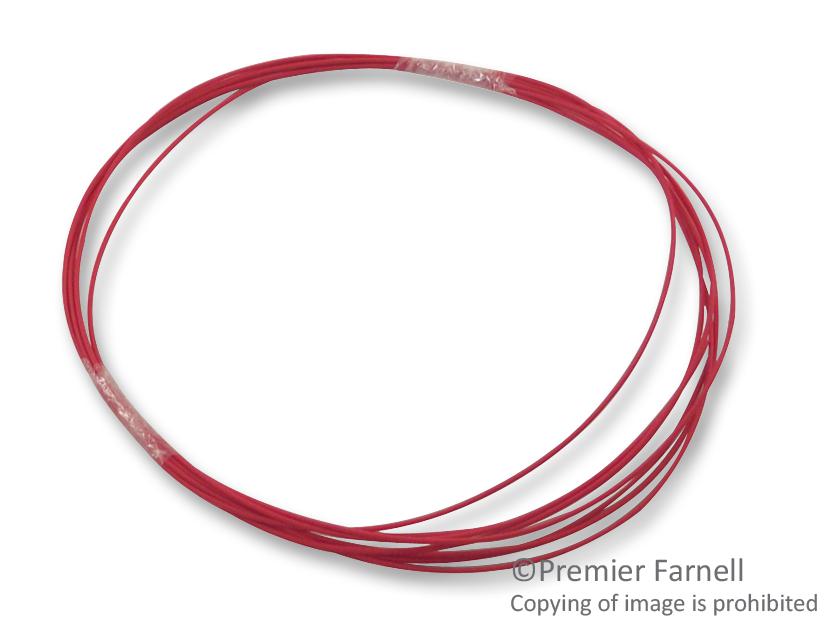

MULTICOMP PRO PP002732 Heatshrink Tubing
This high-quality heat shrink tubing is designed for electrical insulation and protection of components. Made from modified radiation cross-linked polyolefin, it is halogen-free, flexible, and shrinks at lower temperatures. The tubing features a 2:1 shrink ratio and can operate within -55°C to +125°C. It ensures excellent mechanical and electrical performance with high tensile strength of 210.4 MPa, 2200% elongation, dielectric strength of 215 kV/mm, and complies with RoHS and Sony-SS-00259 standards. Ideal for wiring, cable insulation, and sensitive electronic applications.
MULTICOMP PRO PP002732 Heatshrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 x 10⁴ Ohm-cm
- Flammability: FMVSS302 Pass
- Standard Colors: Black, Brown, Blue, White, Red, Yellow
- Inner Diameter (after recovery): 1.6mm to 50.8mm depending on size
- Wall Thickness (after recovery): ~0.36mm to 0.9mm depending on size
- Product Length: 1.2m to 100m depending on size
- Material: Radiation cross-linked polyolefin
- Application: Electrical insulation, cable protection, wiring
- Meets RoHS compliance and Sony-SS-00259 standards
Buy the Pro-Power Series 2:1 Heatshrink Tubing: PP002732
Get the high-quality Pro-Power Series heat shrink tubing PP002732 online today. Perfect for electrical insulation, cable protection, and sensitive electronic components. Made from halogen-free, radiation cross-linked polyolefin, it offers excellent mechanical and electrical performance. With a 2:1 shrink ratio and operating temperature range from -55°C to +125°C, this tubing provides quick, reliable shrinking at 70°C and full recovery at 120°C. Available in multiple sizes and colors, it ensures compliance with RoHS and Sony standards for safe and durable wiring solutions.
Order your Pro-Power Series 2:1 heat shrink tubing PP002732 today and ensure reliable insulation and protection for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002732?
You can click on the BUY or RFQ button to purchase PP002732 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002732?
You can download the PP002732 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002732?
MULTICOMP PRO
