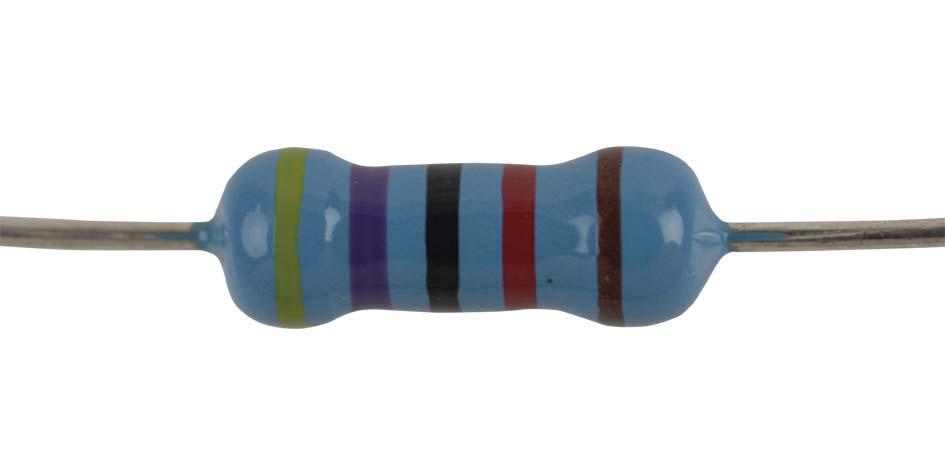

MULTICOMP PRO MCMF0W2FF4702A10 Precision Metal Film Resistor
The MCMF0W2FF4702A10 is a precision metal film resistor with a compact axial design, featuring high insulation resistance and excellent performance across a wide temperature range. Constructed with a ceramic body and tin-plated steel end caps, it offers stability, moisture resistance, and low noise. Suitable for high-precision electronic applications, this resistor provides a maximum working voltage of 250V and a dielectric withstand voltage of 500V. Its robust design ensures reliable performance in demanding environments, making it ideal for precision circuitry, instrumentation, and measurement systems. Operating from -55°C to 155°C.
MULTICOMP PRO MCMF0W2FF4702A10 Precision Metal Film Resistor Specifications:
- Construction: Ceramic body with tin-plated steel end caps
- Maximum Working Voltage: 250V
- Dielectric Withstand Voltage: 500V
- Insulation Resistance: Minimum 1000 megaohms
- Operating Temperature Range: -55°C to 155°C
- Temperature Coefficient: ±15 ppm/°C
- Resistance Tolerance: ±0.1%
- Power Rating: 1/8W (0.125W)
- Resistance Range: 47 ohms to 1 megaohm
- Physical Size: Axial leaded design with terminal bending at ~6mm
- Moisture Resistance: Multiple epoxy coatings provide superior moisture protection
- Suitable for high-precision applications, instrumentation, measurement systems
Buy the Multicomp Series Precision Metal Film Resistor: MCMF0W2FF4702A10
Purchase the Multicomp Series MCMF0W2FF4702A10 precision metal film resistor online today and benefit from high insulation resistance, exceptional temperature stability, and moisture resistance. This resistor is ideal for demanding electronic and instrumentation applications, providing a maximum working voltage of 250V and dielectric withstand voltage of 500V. Its robust design with epoxy coating ensures durability and consistent performance across a wide temperature range from -55°C to 155°C. Available for quick delivery, it guarantees professional quality to enhance your electronic circuitry.
Order your Multicomp Series MCMF0W2FF4702A10 precision metal film resistor today and ensure reliable, high-accuracy performance in your electronic projects.
