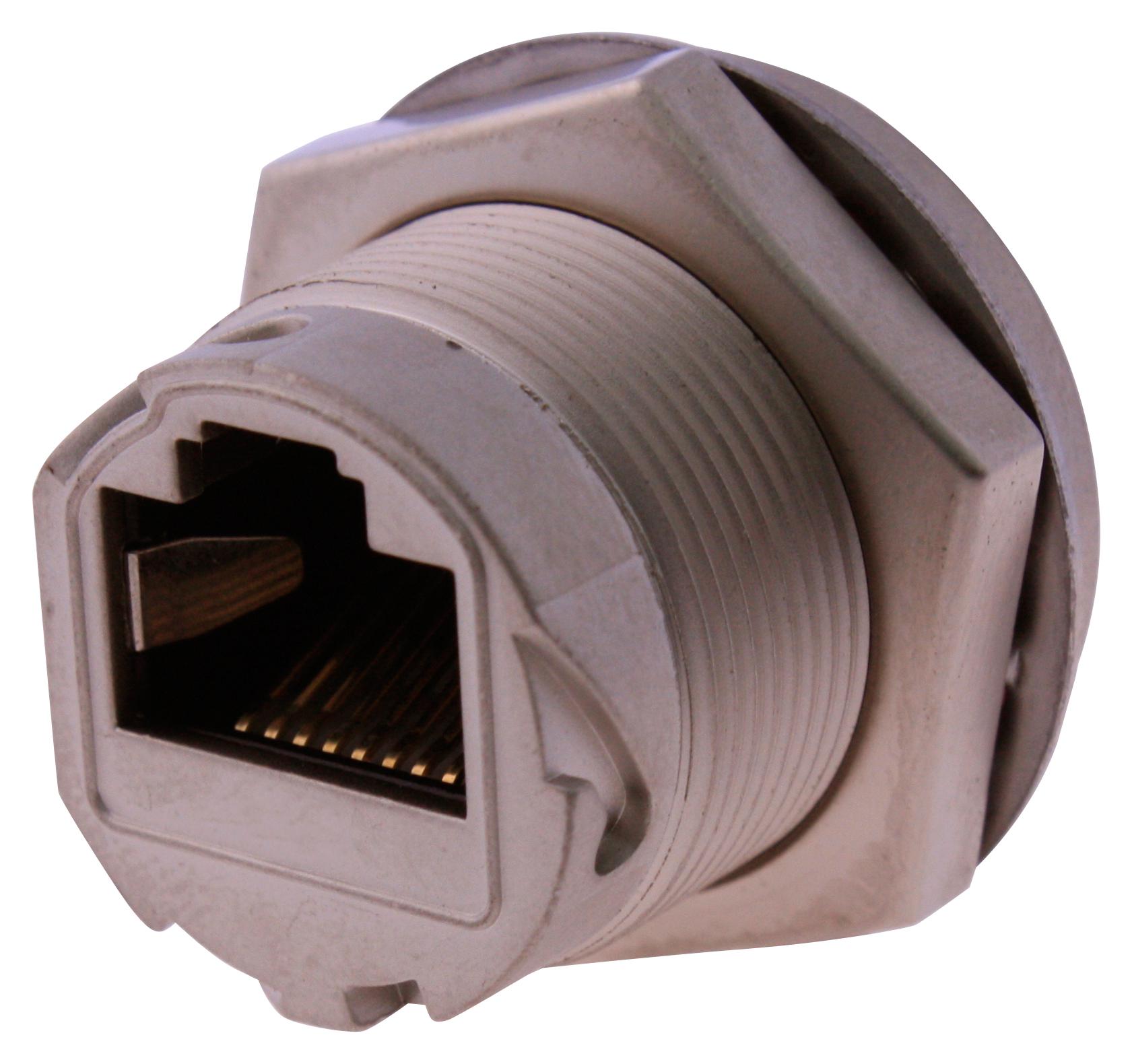

MULTICOMP-PRO MP002458 RJ45 Shielded Connectors
The MP RJ45 Ethernet metal series connectors are crafted from nickel-plated copper alloy with gold-plated contacts, ensuring robust durability and excellent connectivity. These environmentally sealed connectors feature IP68 protection, with full rear potting that offers enhanced environmental resistance, even when unmated or without the sealing cap. Designed for panel mounting with a 20.75mm cut-out, they support DIP terminations, pre-wired configurations, and include couplers with RJ45 sockets on each side. Ideal for automation, communication, and test applications, they provide a reliable lock/screw mating connection, supporting secure industrial data transmission.
MULTICOMP-PRO MP002458 RJ45 Shielded Connectors Specifications:
- IP Rating: IP68
- Material: Copper Alloy, Nickel Plated
- Contacts: Gold Plated
- Panel Cut-Out: 20.75 mm
- Dimensions: 19.2401 mm
- Cable Compatibility: Suitable for various Ethernet cables
- Temperature Range: -40°C to +85°C
- Mounting: Panel mount with screw locking
- Environmental Resistance: Fully sealed with rear potting
- Approvals: RoHS compliant
- Gland Nut Torque: 9 to 10 Kgf-cm
- Gland Diameter: 5mm to 6mm
- Cable Diameter: 6mm to 8.5mm
- Seal: Silicone O-Ring
- Finish: Ni Plated Shell and Hex Nut
- Connectors Support: Straight and right-angle configurations
- Suitable for: Industrial Ethernet, automation, communication systems
Buy the Multicomp IP68 Shielded Ethernet Connectors – Reliable RJ45 Panel Mount for Industrial Applications
Order Multicomp IP68 Shielded Ethernet Connectors online today to ensure secure, durable, and environmentally sealed network connections. These high-performance connectors are designed for harsh industrial environments, providing IP68 protection, gold-plated contacts for optimal conductivity, and robust panel mounting features. Whether you're setting up automation, communication, or testing systems, these connectors deliver reliable, lock-screw securing for a secure connection. Purchase now on authorized platforms and benefit from fast delivery, quality assurance, and technical support for your industrial networking needs.
Buy Multicomp IP68 Shielded Ethernet Connectors now and experience unmatched reliability and performance in industrial networking.
