MULTICOMP PRO MCMF0W4BB1002A50 Metal Film Resistor

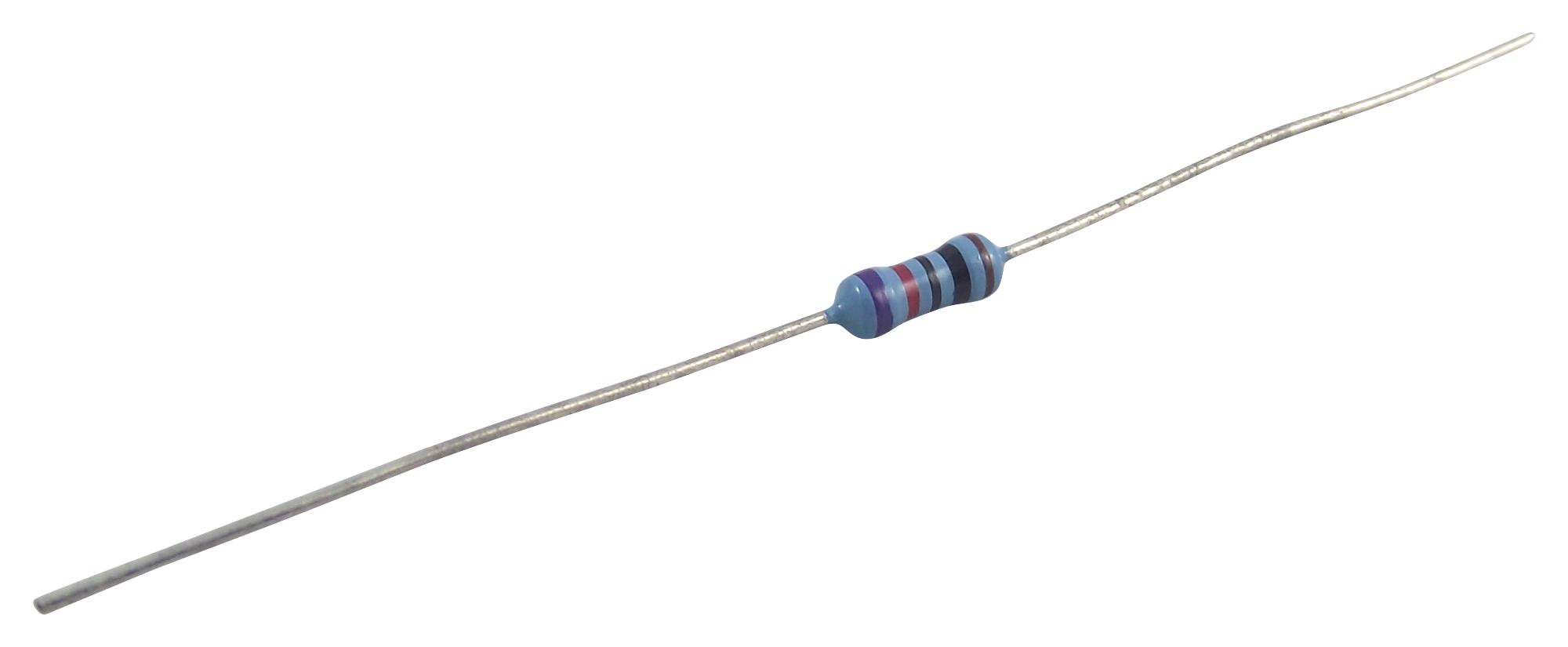

The MCMF0W4BB1002A50 is a high-precision metal film fixed resistor designed with a ceramic rod body and tin-plated steel end caps. It features an annealed copper wire coated with tin-lead, insulated with sky blue epoxy resin, and manufactured for stability in electronic circuits. This axial leaded through-hole resistor withstands up to 500V dielectric voltage, has a minimum insulation resistance of 10,000 megaohms, and operates efficiently within a temperature range of -55°C to 155°C. Suitable for precision applications, it ensures reliable performance and durability across various industrial and consumer electronic devices.
MULTICOMP PRO MCMF0W4BB1002A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Maximum Work Voltage: 250V
- Maximum Overload Voltage: 500V
- Dielectric Withstanding Voltage: 500V
- Insulation Resistance: ≥ 10,000 MΩ
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: 40.1% (Series MCMFOW4B), 241% (Series MCMFOW4F)
- Resistance Range: 100 to 1MΩ
- Construction Material: Ceramic rod body, metal film resistance layer, steel end caps, tin-plated copper lead wires, epoxy resin coating
- Lead Orientation: Axial leads bent 90° at about 6mm, rotatable 360°
- Temperature Coefficient: ±50 PPM/°C
- Soldering Temp.: 245°C for 2-3 seconds
- Solderability: ≥ 95% coverage
- Vibration Resistance: 55Hz, 3 planes, 2 hours each
Buy the Buy Multicomp Fixed Resistor Part Number MCMF0W4BB1002A50 Online
Enhance your electronic projects with the reliable and precise metal film resistor MCMF0W4BB1002A50. Featuring a ceramic rod body, steel end caps, and sky blue epoxy coating, it offers high insulation resistance, withstands voltages up to 500V, and operates from -55°C to 155°C. Perfect for industrial, consumer electronics, and precision applications, this resistor ensures long-lasting performance and stability. Order online today to benefit from fast delivery, competitive pricing, and trusted quality for your manufacturing and repair needs.
Get Multicomp Metal Film Resistor MCMF0W4BB1002A50 today—designed for precision, durability, and reliable performance in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4BB1002A50?
You can click on the BUY or RFQ button to purchase MCMF0W4BB1002A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4BB1002A50?
You can download the MCMF0W4BB1002A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4BB1002A50?
MULTICOMP PRO
