MULTICOMP PRO 2213SM20GTB Dual Row Vertical SMD Pin Header
The 2.54mm Pin Header in a double row, vertical SMD configuration is designed for reliable connections in electronic assemblies. Constructed with high-temp plastic (Nylon 6T UL94V-0), the header features gold-plated copper alloy contacts rated for 3A AC/DC and 250V AC/DC. Suitable for operating temperatures from -40°C to +105°C, it provides low contact resistance of max 20mΩ and insulation resistance exceeding 1000MΩ. Its compact dimensions and robust materials make it ideal for dense PCB designs in industrial, automation, and consumer electronics.
MULTICOMP PRO 2213SM20GTB Dual Row Vertical SMD Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Ivory
- Contact Material: Copper Alloy
- Plating: Gold
- Dimensions: 6.00 mm (width), 7.50 mm (spacing), 22 POS (for this specific part), SMD type
- Contact Spacing: 2.54 mm (standard)

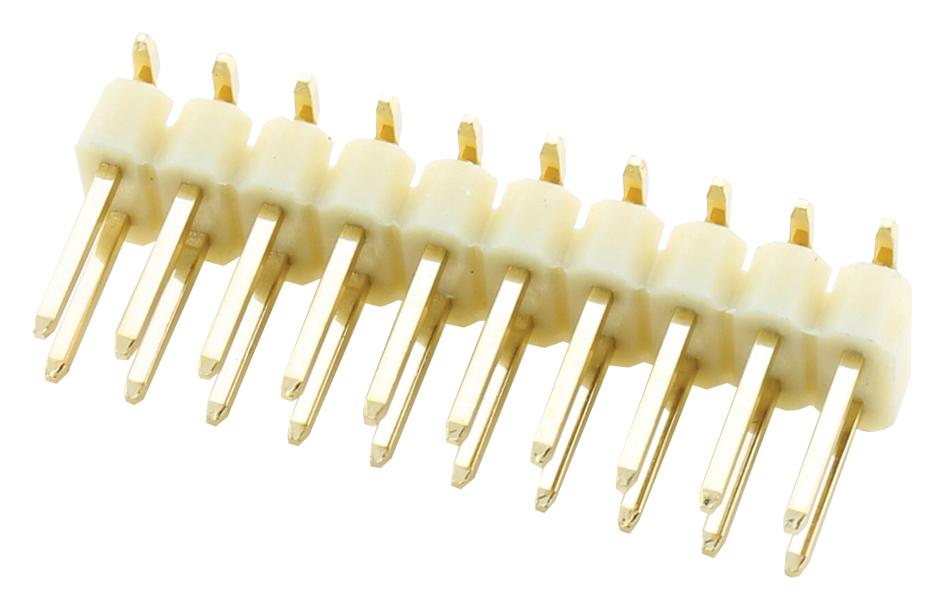

Buy the Multicomp 2213SM20GTB – Reliable 2.54mm Connectors for Industrial Applications
Secure your electronic projects with the high-quality 2.54mm dual row vertical SMD pin header. Featuring gold-plated contacts and rated for 3A at 250V, it ensures reliable electrical connections in compact PCB layouts. Made with high-temp nylon and copper alloy, it withstands temperatures from -40°C to +105°C, making it ideal for industrial and automation applications. Easy to install and RoHS compliant, this header provides outstanding durability and performance for professional electronics manufacturing and repair.
Buy Multicomp 2213SM20GTB now and experience dependable connectivity with high current capacity in compact electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2213SM20GTB?
You can click on the BUY or RFQ button to purchase 2213SM20GTB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213SM20GTB?
You can download the 2213SM20GTB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2213SM20GTB?
MULTICOMP PRO
