MULTICOMP-PRO MCMF0W4BB1003A50 Metal Film Resistor
The MCMF0W4BB1002A50 is a durable metal film fixed resistor with a ceramic rod body and tin-plated steel end caps. It features an axial lead design with annealed copper wire coated in tin-lead, protected by sky-blue epoxy resin insulation. Designed for reliable soldering, terminals should be bent at about 6mm from the body and rotated for secure attachment. It offers high insulation resistance of at least 1000 megaohms, withstands up to 500V voltage, and operates from -55°C to 155°C. Commonly used in electronics for precise resistance applications, it ensures stable performance under diverse thermal and electrical conditions.
MULTICOMP-PRO MCMF0W4BB1003A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: 250V
- Max. Overload Voltage: 500V
- Dielectric Withstanding Voltage: 500V
- Rated Ambient Temp: 0°C
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 100Ω to 1MΩ
- Resistance Tolerance: ±1% (MCMFOW4B), ±2% (MCMFOW4F)
- Construction: Ceramic rod body, metal film resistive element, steel end caps, annealed copper wire leads coated with tin
- Insulation Resistance: ≥1000 MΩ
- Leakage Voltage: 500V
- Soldering Temp.: 245°C for 2–3 seconds
- Resistor marking: Colour-coded per JIS C 0802
- Lead Length: Approximately 6mm from the body for bending tests

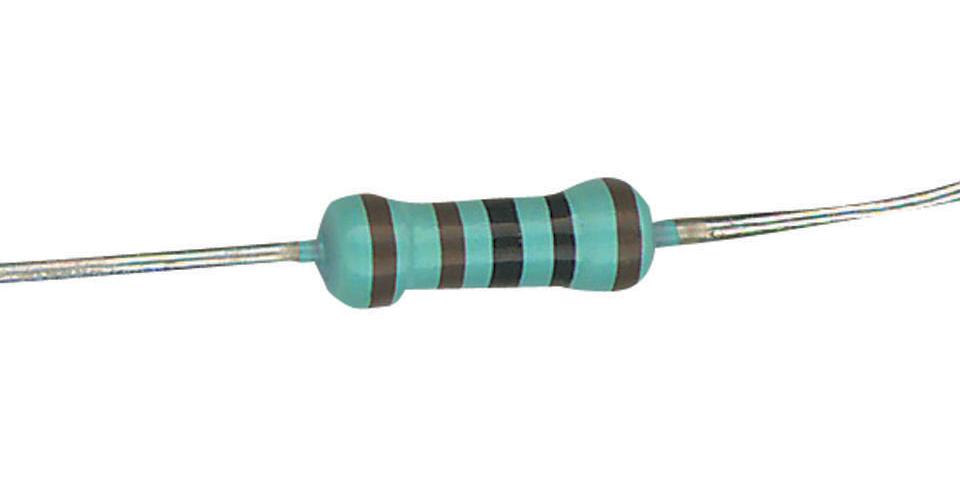

Buy the Farnell Series MCMF Metal Film Resistor: 1000KΩ
Order the Farnell MCMF0W4BB1002A50 metal film resistor online today. Featuring a ceramic rod construction with sky-blue epoxy coating, it provides high insulation resistance and stable operation across a wide temperature range. Its robust design ensures reliable performance in demanding electronic circuits, with rated power of 0.25W and withstand voltage up to 500V. Ideal for precise resistance applications, this resistor is easy to solder and ensures consistent performance in industrial, automotive, and consumer electronics. Purchase now for fast delivery and quality assurance.
Buy Farnell MCMF0W4BB1002A50 now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCMF0W4BB1003A50?
You can click on the BUY or RFQ button to purchase MCMF0W4BB1003A50 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4BB1003A50?
You can download the MCMF0W4BB1003A50 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCMF0W4BB1003A50?
MULTICOMP-PRO
