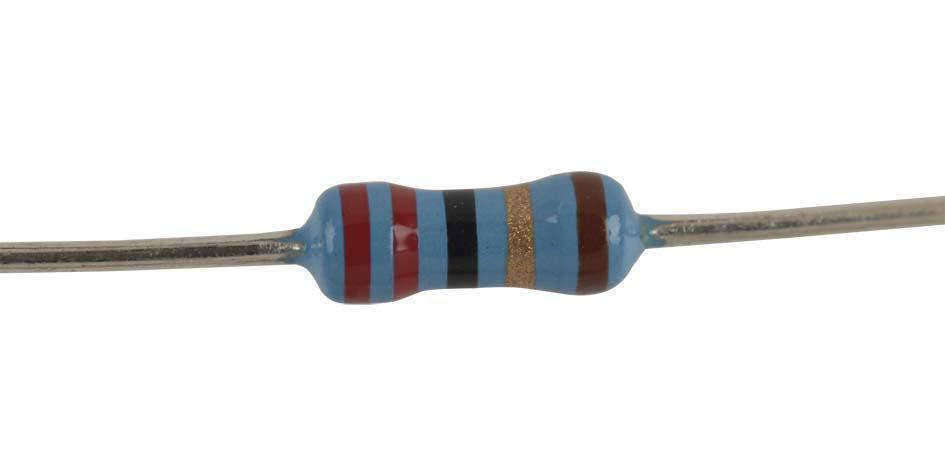

MULTICOMP PRO MCMF0W4FF220JA50 Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features a robust epoxy coating on a vacuum-deposited metal film, providing excellent moisture protection. Its nichrome resistor element ensures stable performance across various environments. The resistor complies with EIA color-coding standards and is available in non-flame types. It offers low noise, a low voltage coefficient, and a wide resistance range in a compact package. Custom resistance values outside the standard range can be supplied on a case-by-case basis. Multicomp Pro products are rated 4.6 out of 5 stars, with a 12-month limited warranty. A high percentage of customers would recommend this product to others.
MULTICOMP PRO MCMF0W4FF220JA50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Calculated as P x R / V
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 100 to 1MΩ
- Resistance Tolerance: 40.1% (Series MCMFOW4B), 24.1% (Series MCMFOW4F)
- Dielectric Withstanding Voltage: 00V (not specified detailed)
- Material: Metal film, epoxy resin coating
- Body Diameter: 2.5mm
- Body Length: 6.8mm
- Lead Wire Material: Annealed copper wire coated with tin
- Insulation Resistance: 10,000 MΩ min.
- Temperature Coefficient: ±50 PPM/°C
- Soldering Temp.: 245°C ±3°C for 2-3 seconds
- Solderability: 95% coverage min.
- Welding and mounting: End caps steel (tin plated iron surface)
Buy the Multicomp Series MCMF Metal Film Resistor: MCMF0W4FF220JA50
Purchase the high-quality Multicomp Series metal film resistor online today for your electronic and industrial needs. Featuring excellent moisture resistance, stable performance, and customization options, this resistor provides reliable operation across wide temperature ranges. Its epoxy coating and nichrome element ensure long-term durability, low noise, and minimal voltage coefficient. With a compact size, easy installation, and a 12-month warranty, ordering online guarantees quick delivery and competitive prices to meet your engineering requirements efficiently.
Order your Multicomp Series MCMF0W4FF220JA50 today and ensure reliable, high-precision performance for your electronic projects.
