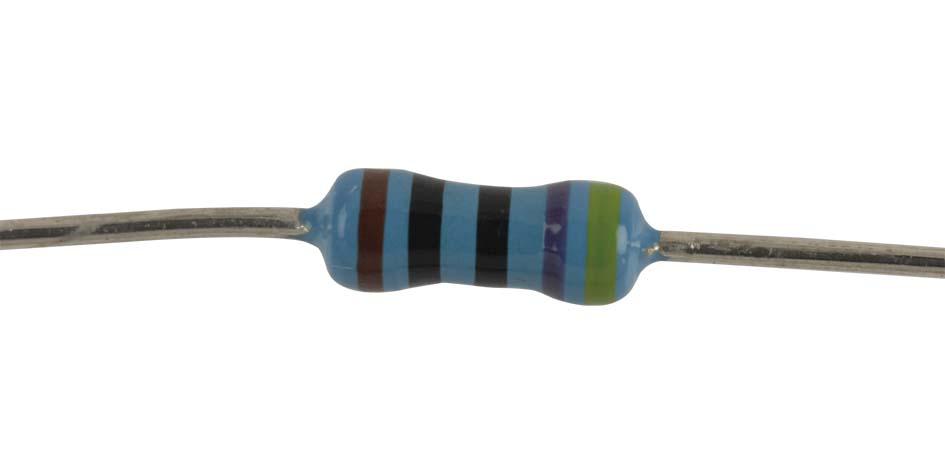

MULTICOMP PRO MCMF0W4FF4700A50 Precision Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features a robust construction with multiple epoxy coatings on a vacuum-deposited metal film, providing excellent moisture resistance. It uses a nichrome resistor element for stable performance across various environments. These resistors comply with EIA standard color-coding, are available in non-flame types, and exhibit low noise, low voltage coefficient, and a low temperature coefficient. They are offered in a wide range of precision values within a compact package. Custom ohmic values that are very low or very high can be supplied on a case-by-case basis.
MULTICOMP PRO MCMF0W4FF4700A50 Precision Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: calculated from power and resistance
- Resistance Range: 100 to 1MΩ
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: ±1% (0.5% available)
- Temperature Coefficient: ±50 PPM/°C
- Insulation Resistance: 10,000 MΩ min.
- Construction: Ceramics body, metal film resistor, tin-plated steel end caps
- Physical Dimensions: Diameter approximately 2.5mm, length about 6.8mm, with lead length 28mm
- Material: Epoxy resin coating, annealed copper wire leads
Buy the Multicomp Series MCMF Metal Film Resistor: MCMF0W4FF4700A50
Purchase the multicomp series precision metal film resistor online today. Designed with robust epoxy coatings and a nichrome resistor element, it ensures stable performance in various environments. Suitable for demanding electronic circuits, this resistor provides low noise, a low temperature coefficient, and high moisture resistance. With wide resistance options from 100 ohms to 1 megaohm, it offers exceptional reliability and accuracy. Buy now for quality components that ensure durability, precision, and excellent electrical stability for your projects and manufacturing needs.
Get multicomp series MCMF0W4FF4700A50 today—built for precision and long-lasting durability.
