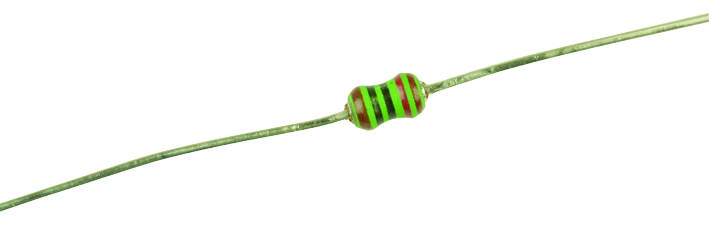

MULTICOMP PRO MCMFF04FF1002A50 Precision Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features multiple layers of epoxy coating on a vacuum-deposited metal film for enhanced moisture resistance. It utilizes a nichrome resistor element to ensure stable performance across various environmental conditions. Key features include adherence to EIA standard color coding, availability of non-flame types, low noise and voltage coefficient, low temperature coefficient variations, and a wide range of precision tolerances in a compact package. Custom resistance values can be supplied for very low or high ohmic requirements. These resistors are part of Multicomp Pro's high-quality product line, rated 4.6 out of 5 stars, with a 12-month limited warranty. 96% of customers would recommend this product to others.
MULTICOMP PRO MCMFF04FF1002A50 Precision Metal Film Resistor Specifications:
- Power Rating: 0.25W at 70°C
- Dimensions: Diameter 1.85 mm, Length 3.5 mm
- Tolerance: ±1%, ±2%, ±5%, ±10%, or custom
- Resistance Range: 100Ω to 1MΩ (custom available)
- Temperature Coefficient: ±50 to ±200 PPM/°C, depending on model
- Insulation Resistance: Minimum 10,000MQ
- Maximum Working Voltage: 200V to 500V based on model
- Overload Voltage: 400V to 700V depending on model
- Dielectric Withstanding Voltage: 400V to 1,000V
- Solderability: Minimum 95% coverage
- Flammability: Meets RoHS directive, available in non-flame coating type
Buy the Multicomp Series Precision Metal Film Resistor: MCMFF04FF1002A50
Get the high-performance precision metal film resistor from Multicomp now available online. Featuring epoxy moisture protection, low noise, and customizable resistance values, this resistor ensures stability in demanding environments. Its small size and wide tolerance options make it perfect for high-accuracy electronic applications. Designed with Nichrome elements, it offers excellent thermal stability, moisture resistance, and electrical performance. Purchase today for reliable, long-lasting operation in your critical circuitry needs.
Buy Multicomp high-precision metal film resistor MCMFF04FF1002A50 now and experience unmatched reliability and performance for your electronic projects.
