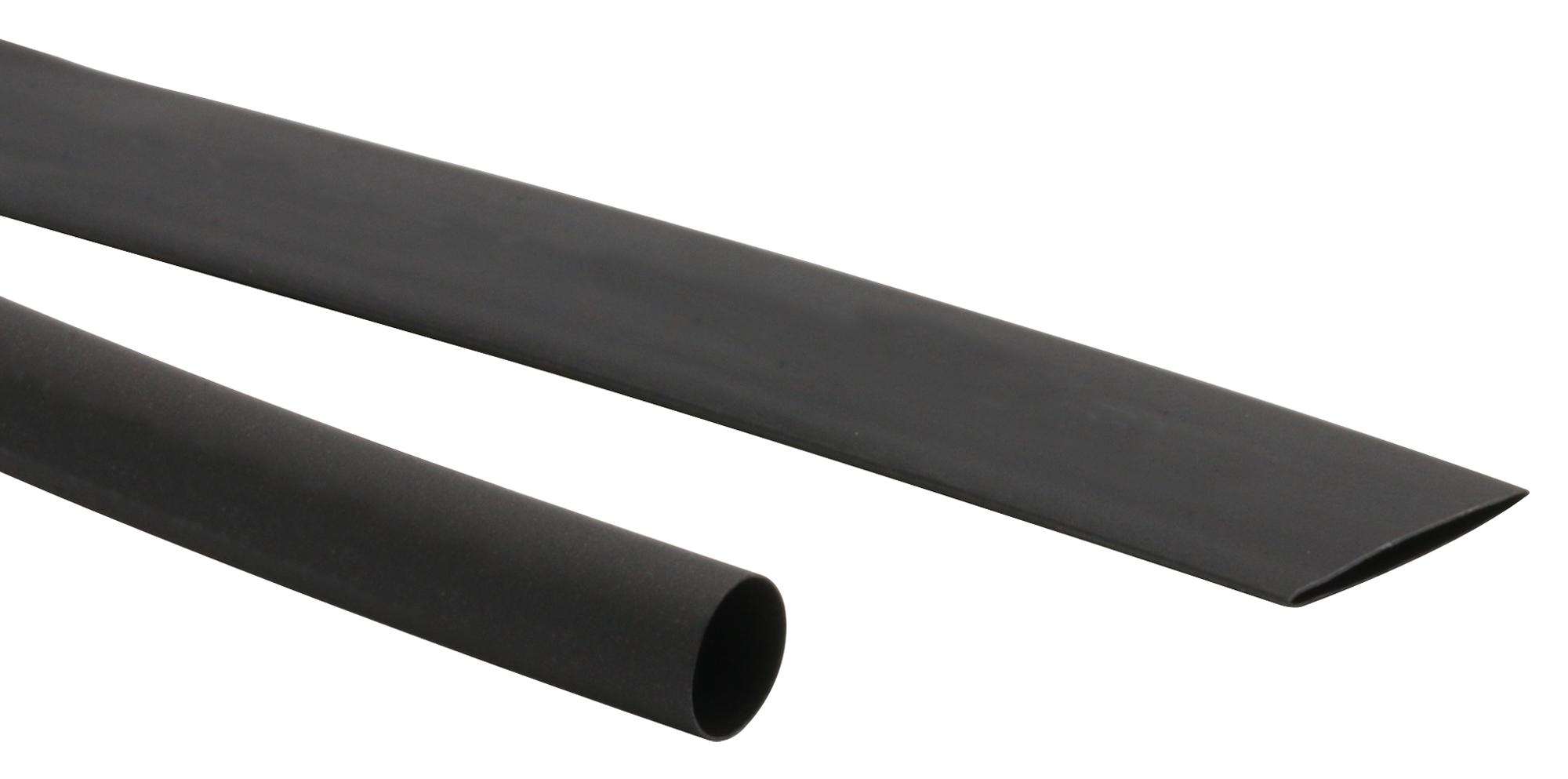

MULTICOMP PRO PP001891 Heat Shrink Tubing
This high-quality heat shrink tubing features a thin wall design with a 2:1 shrink ratio, suitable for space-saving and rapid shrinking applications. Made from halogen-free polyolefin, it meets environmental standards like RoHS and Sony-SS-00259. It operates between -55°C and +125°C, with a minimum shrink temperature of 270°C, full recovery at 125°C, and excellent electrical insulation and mechanical properties, including high tensile strength, elongation, and dielectric strength. Ideal for electrical insulation, wire protection, and environmental sealing in electronics and electrical applications.
MULTICOMP PRO PP001891 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 270°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Color: Black
- Tensile Strength: 210.4 MPa (ASTM D2671)
- Ultimate Elongation: 2200% (ASTM D2671)
- Longitudinal Shrinkage: 45% (UL 224)
- Dielectric Strength: 215 kV/mm (ASTM D150)
- Volume Resistivity: 21x10^10 Ω·cm (ASTM D2671)
- Heat Aging Tensile Strength: 27.3 MPa after 168 hours at 158°C
- Copper Stability & Corrosion: Pass (UL 224)
- Product dimensions vary by part number, with internal diameters from 1.4 mm to 41.5 mm and wall thicknesses from 0.20 mm to 0.45 mm.
Buy the Farnell Series PRO-POWER Heat Shrink Tubing: PP001891
Experience reliable electrical insulation with Farnell Series PRO-POWER Heat Shrink Tubing, featuring a thin wall, 2:1 shrink ratio, and halogen-free polyolefin materials. Designed for quick shrinking and space-saving, it operates between -55°C and +125°C with a minimum shrink temperature of 270°C. Its excellent electrical and mechanical properties include high tensile strength, elongation, and dielectric strength, making it perfect for wire protection, environmental sealing, and electrical insulation in various industrial applications. Buy online now for quality and performance.
Order your Farnell Series PRO-POWER Heat Shrink Tubing today and give your electrical projects the dependable insulation and protection they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001891?
You can click on the BUY or RFQ button to purchase PP001891 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001891?
You can download the PP001891 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001891?
MULTICOMP PRO
