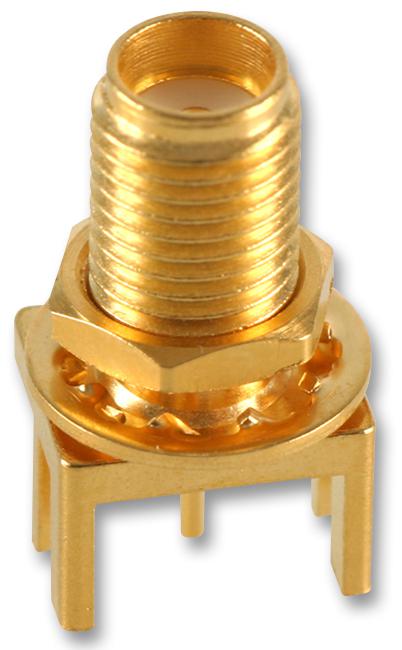

MULTICOMP PRO MP1970TGG SMA Bulkhead Connector
The 19-70-TGG from Multicomp Pro is a SMA edge (end) launch bulkhead jack designed for PC boards with a thickness of 1.73mm and panel thickness up to 3.175mm. Its semi-precision design delivers consistent electrical performance from DC to 12.4GHz, extending to 18GHz with semi-rigid cables. Featuring a 50-ohm impedance, gold-plated brass body, and gold-plated beryllium copper center contact with PTFE insulation, it conforms to MIL-STD-348A standards. Ideal for microwave, RF, and networking applications, it ensures broadband, low reflection, minimal attenuation, and low VSWR, making it a reliable choice for industrial and communications use.
MULTICOMP PRO MP1970TGG SMA Bulkhead Connector Specifications:
- Connector Body Style: Bulkhead Jack Receptacle
- Frequency Range: DC to 18GHz
- Impedance: 50Ω
- Voltage Rating: 500V Max
- VSWR: 1.23 Max
- Materials: Brass body, Beryllium Copper center contact, PTFE insulation
- Connector Mounting: PCB Mount
- Operating Temperature: -65°C to +165°C
- Panel Thickness: Up to 3.175mm
- Millimeter Dimensions: Length varies, typical panel interface and contact sizes compliant with MIL-STD-348A
Buy the Multicomp Pro MP-19-70-TGG – Reliable SMA Bulkhead Connectors for Industrial Applications
Enhance your microwave and RF systems with the reliable SMA bulkhead connector from Multicomp Pro. Designed for durability and high-frequency performance up to 18GHz, this connector features a gold-plated brass body and beryllium copper contact for excellent conductivity and resilience. Its PCB mounting style simplifies installation, making it ideal for industrial, communication, and networking applications. With compliance to MIL-STD-348A, it provides consistent low VSWR, minimal attenuation, and broadband operation, ensuring superior signal integrity in demanding environments. Purchase online today for quick delivery and dependable performance.
Order your Multicomp Pro MP-19-70-TGG SMA bulkhead connector today and enhance your RF and microwave projects with dependable and high-quality performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP1970TGG?
You can click on the BUY or RFQ button to purchase MP1970TGG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP1970TGG?
You can download the MP1970TGG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP1970TGG?
MULTICOMP PRO
