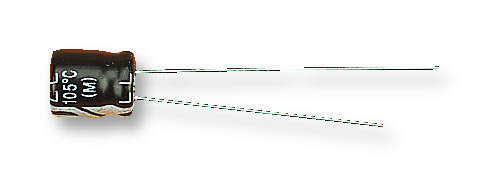

MULTICOMP-PRO MCMHR6V3226M4X7 Electrolytic Capacitor
This electrolytic capacitor from the MCMHR Series features a compact short body length of only 7mm, ideal for high-density electronic devices such as pocket calculators, car stereos, and mini-audio systems. Operating from -40°C to +105°C, it handles voltages from 6.3V to 683V and capacitances from 0.1pF to 470uF. It offers low leakage current, excellent stability at low temperatures, and withstands high-temperature loading and solvent cleaning, making it suitable for demanding electronic applications.
MULTICOMP-PRO MCMHR6V3226M4X7 Electrolytic Capacitor Specifications:
- RoHS Compliant
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage Range: 6.3V DC to 683V DC
- Capacitance Range: 0.1pF to 470uF
- Capacitance Tolerance: +20% (at+20°C,120 Hz)
- Leakage Current: ≤ 0.01CV or 3 (uA) after two minutes
- Dissipation Factor (Tan δ): Max 0.24 at 63V, decreasing with higher voltage
- Temperature Stability: -25°C / +20°C: 2-4; -40°C / +20°C: 3-8
- High Temperature Loading Stability: Meets initial leakage, ±20% capacitance change, and Tan δ limits after 1,000 hours at +105°C
- Shelf Life: 500 hours at +105°C with no voltage, same limits as high temperature testing
- Solvent Proof: withstanding circuit-board cleaning in Freon TE, TES, or steam
Buy the multicomp Series MCMHR Electrolytic Capacitor: 6.3V to 683V
Enhance your electronic designs with the multicomp Series electrolytic capacitor, suitable for a wide range of applications. This high-quality, compact capacitor offers excellent stability, low leakage current, and robust temperature tolerance from -40°C to +105°C. With rated voltages up to 683V and capacitance from 0.1pF to 470uF, it is perfect for high-density, space-constrained projects like portable devices, office equipment, and automotive systems. Buy online today to ensure fast delivery and dependable performance for your next project.
Order your multicomp Series MCMHR electrolytic capacitor today and ensure your electronic projects benefit from reliable, high-performance capacitance solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCMHR6V3226M4X7?
You can click on the BUY or RFQ button to purchase MCMHR6V3226M4X7 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR6V3226M4X7?
You can download the MCMHR6V3226M4X7 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCMHR6V3226M4X7?
MULTICOMP-PRO
