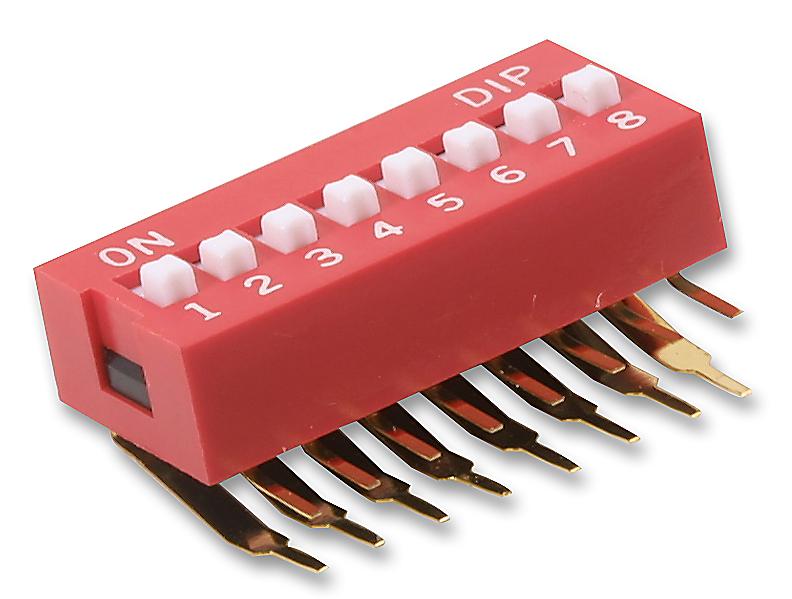

MULTICOMP PRO MCNDA08V DIP Switch
This right angle DIP switch offers multiple positions with slide actuation, suitable for industrial control, computer peripherals, and various function controls. Made from high-temperature PBT and PA66 materials with gold-plated contacts, it features reliable electrical performance with contact resistance less than 50mΩ, insulation resistance over 100MΩ, and dielectric strength of 500V AC for 1 minute. Designed to withstand temperatures from -40°C to +85°C, it supports 2000 operating cycles, and is RoHS compliant for eco-friendly use. Easy to install in compact electronics requiring precise switching control.
MULTICOMP PRO MCNDA08V DIP Switch Specifications:
- Material: Brass with gold plating for contacts
- Shell Material: High Temperature PBT and PA66 + 20% GF
- Contact Resistance: Less than 50mΩ (initial)
- Insulation Resistance: Over 100MΩ
- Dielectric Strength: 500V AC for 1 minute
- Operating Temperature: -40°C to +85°C
- Operating Cycles: 2000 cycles
- Operating Force: 1.0N max
- Travel: 2mm
- Soldering Temperature: Max 350°C for 5 seconds
- Solderability: 75% coverage, immersion for 5 seconds
- Switching Current: 25mA, 24V DC
- Contact Rating: 100mA, 50V DC (non-switching)
Buy the Buy Multicomp DIP Switch Part Number MCNDA08V Online
Order the Multicomp DIP Switch MCNDA08V online today for your industrial and electronic control needs. This reliable right angle switch features multiple positions, gold-plated contacts, and a temperature range of -40°C to +85°C, ensuring durability across various applications. Designed for quick installation, it supports 2000 cycles, and its RoHS compliance makes it eco-friendly. Whether for control panels or circuit boards, this switch provides precise, consistent operation. Purchase now to experience top-notch quality and hassle-free online shopping.
Get Multicomp MCNDA08V today—designed for reliable switching and durable performance in electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDA08V?
You can click on the BUY or RFQ button to purchase MCNDA08V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDA08V?
You can download the MCNDA08V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDA08V?
MULTICOMP PRO
