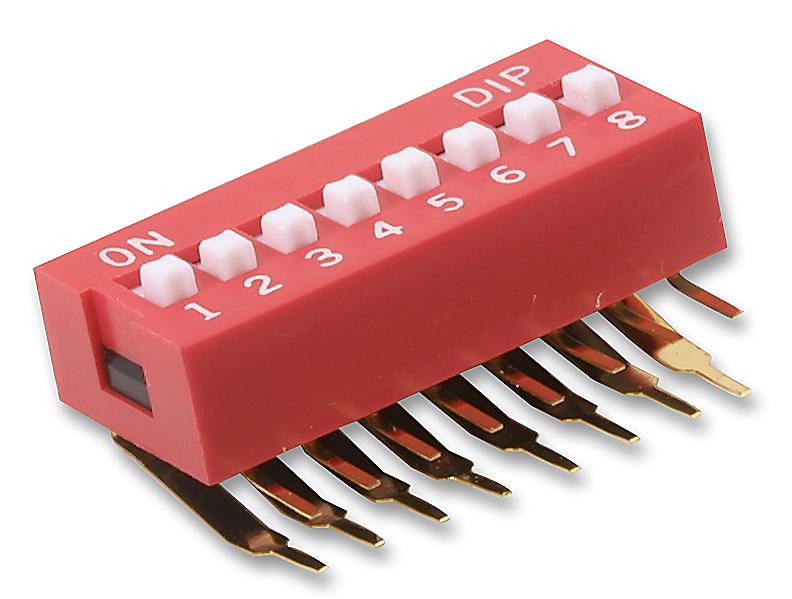

MULTICOMP-PRO MCNDA12V DIP Switch
This right-angle DIP switch features multiple positions, slide actuation, and high-temperature rated PBT housing. It is suitable for industrial control, computer peripherals, and electronic applications, providing reliable switching with a contact resistance of less than 50mΩ and insulation resistance of at least 100MΩ. Constructed with brass, gold-plated contacts, and a molded black PA66 base, it offers durability with 2000 cycles of operation, an operating temperature range of -40°C to +85°C, and RoHS compliance. Ideal for space-constrained electronic projects needing precise manual control.
MULTICOMP-PRO MCNDA12V DIP Switch Specifications:
- Housing Material: High Temperature PBT 15% - Red
- Contact Material: Brass, Gold Plated
- Contact Resistance: Less than 50mΩ
- Insulation Resistance: Minimum 100MΩ at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Temperature: -40°C to +85°C
- Number of Positions: 3, 4, 5, 6, 8, 12 options available
- Cycle Life: 2000 cycles
- Operating Force: 1000gf max
- Physical Dimensions: Varies by model, e.g., 8.98mm to 31.84mm length
- RoHS Compliant
- Soldering Temperature: Max 350°C, Max 5 seconds
- Tested for Vibration, Shock, and Solderability
Buy the Multicomp DIP Switch – Reliable Industrial Control for Series MCNDA12V
Get your series MCNDA12V DIP switch online today for precise manual control in space-constrained electronic projects. With robust construction, gold-plated contacts, and broad temperature range, this reliable switch offers durability for industrial automation, computer peripherals, and industrial control applications. It features multiple positions, high cycle life of 2000 operations, and RoHS compliance. Perfect for engineers seeking high-quality, easy-to-solder switches that withstand demanding environments while providing consistent performance and safety standards, making your projects more reliable and efficient.
Order your Multicomp series MCNDA12V right-angle DIP switch today and enhance your electronic control solutions with dependable switch quality.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCNDA12V?
You can click on the BUY or RFQ button to purchase MCNDA12V from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDA12V?
You can download the MCNDA12V datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCNDA12V?
MULTICOMP-PRO
