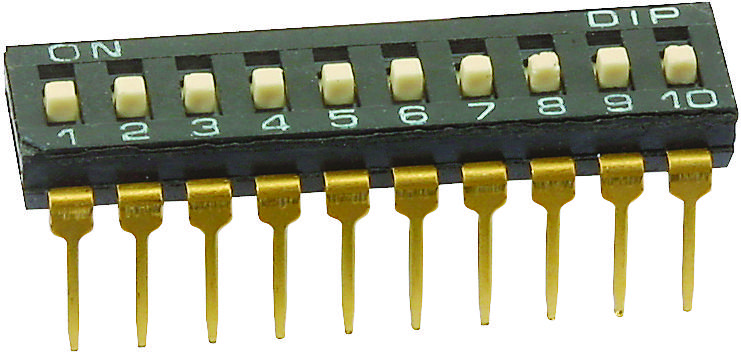

MULTICOMP PRO MCNDI10S DIP Switch
This slide type DIP switch from the Multicomp Pro series offers a reliable solution for electronic circuit configurations with multiple poles. Featuring a compact design with raised actuators, it is available in 2, 4, 6, 8, and 10 pole options, suitable for various applications. The switch operates at a rating of 25mA, 24VDC, with a lifetime of 2,000 cycles, and withstands temperatures from -20°C to +85°C. Its gold contacts ensure high reliability, and the RoHS compliance makes it environmentally friendly for modern electronic projects.
MULTICOMP PRO MCNDI10S DIP Switch Specifications:
- Contact Arrangement: SPST
- Poles: 2, 4, 6, 8, 10
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 100MQ Min. 500V DC
- Dielectric Strength: 500V AC/1 minute
- Operating Force: 1,000gf max.
- Travel: > 1mm
- Operating Life: 2,000 cycles
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Varying length for each pole count, e.g., 26.34mm for 10 poles
- RoHS compliant and gold contact for high reliability
- RoHS compliant
- Features: Low profile, high reliability, Splay terminal type
Buy the Buy Multicomp Pro DIP Switch Part Number MCNDI10S Online
Enhance your electronic circuits with the high-quality Multicomp Pro DIP switch, available in multiple poles for versatile applications. Featuring gold contacts for increased durability and a compact, low-profile design, this switch ensures reliable performance and easy installation. Suitable for various configurations with a current rating of 25mA at 24VDC, it withstands demanding environments with a temperature range of -20°C to +85°C. Purchase online today for quick delivery and trusted quality for your critical projects.
Buy Multicomp Pro MCNDI10S now and experience unmatched reliability and high-performance switching for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDI10S?
You can click on the BUY or RFQ button to purchase MCNDI10S from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDI10S?
You can download the MCNDI10S datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDI10S?
MULTICOMP PRO
