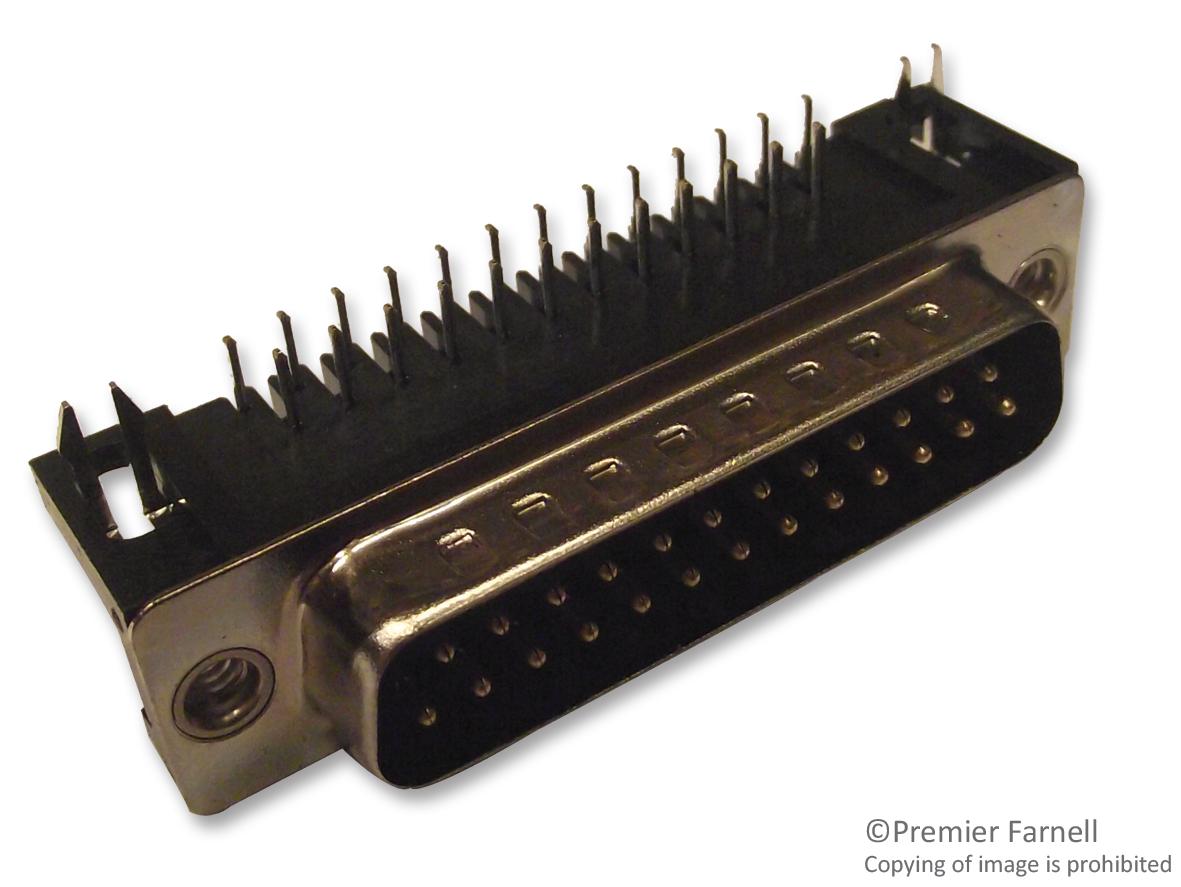

MULTICOMP PRO 5504F125P0203F1 D-Sub Connector
The 25-way 5A right-angle D-subminiature male connector features gold-plated copper alloy contacts with a nickel undercoat. Designed for PCB mounting, it is constructed with high-temperature PBT plastic housing that meets UL94V-0 standards and includes solder termination. The connector offers maximum contact resistance of 20 milliohms, minimum insulation resistance of 1000 megaohms, and supports a dielectric withstand voltage of at least 1000 VAC for one minute. It operates within a temperature range of -55°C to 105°C. Suitable for reliable electronic connections, this connector is part of the 5504 series and is ideal for industrial equipment and PCB applications.
MULTICOMP PRO 5504F125P0203F1 D-Sub Connector Specifications:
- Current Rating: 5A
- Voltage Rating: 1000V AC for 1 minute
- Contact Resistance: Max 20 milliohms
- Insulation Resistance: Min 1000 megaohms
- Temperature Range: -55°C to +105°C
- Material: High-Temp Plastic (UL94V-0)
- Contact Material: Copper Alloy Nickel Undercoated, Gold Plated
- Shell Material: Metal Iron with Tin Plating
- Dimensions (mm): A 38.96, B 47.04, C 53.04
- No of Positions: 25
Buy the Multicomp Series 5504 25-Way D-Subconnector: 5504F125P0203F1
Experience reliable electronic and industrial connections with the 25-pin right-angle D-submale connector. Featuring gold-plated copper contacts for enhanced conductivity, high-temperature PBT housing, and solder termination, it ensures durable performance in demanding environments. With a maximum contact resistance of 20 milliohms, insulation resistance above 1000 megaohms, and support for 1000V AC withstand voltage, this connector operates efficiently from -55°C to +105°C. Perfect for PCB mounting in industrial equipment, it provides robust and dependable connectivity for various electronic applications.
Get Multicomp Series 5504 25-Way D-Subconnector today—built for industrial reliability and long-lasting performance.
