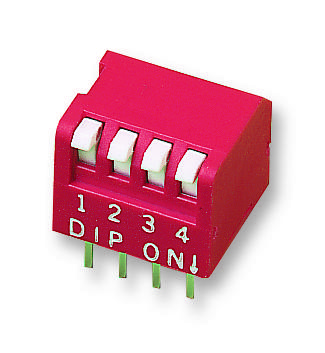

MULTICOMP PRO MCNDP04V Piano DIP Switch
This 4-position piano type DIP switch features SPST-NO push-down operation with a red cover, suitable for industrial control, computer peripherals, and various function controls. Made with thermoplastic PBT and PA66, contact components are copper alloy with gold plating for reliable switching. It operates over -40°C to +85°C, with an operating force of 400gf. The switch supports 2000 cycles, with high insulation resistance of 100MQ minimum and contact resistance below 50mOhm. Soldering at max 350°C for 5 seconds ensures durability in various environments. Designed for reliable service in electronic and control applications.
MULTICOMP PRO MCNDP04V Piano DIP Switch Specifications:
- Lever: Thermoplastic PBT UL 94V-0 - White
- Slider: Thermoplastic PBT UL 94V-0 - White
- Cover: Thermoplastic PBT UL 94V-0 - Red
- Contact Material: Copper Alloy, Gold Plated
- Terminal: Brass, Gold Plated
- Base Material: Thermoplastic PA66 UL 94V-0 - Black
- Contact Rating: Non-Switching: 100mA, 50V DC; Switching: 25mA, 24V DC
- Contact Resistance: 50mΩ max.
- Insulation Resistance: 100MQ min.
- Dielectric Strength: 500V AC/1 min.
- Operating Force: 400gf max.
- Travel: 225°
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temperature: Max 350°C for 5 seconds
- Vibration Resistance: 10-55-10 Hz, 1 min/cycle for 2 hours each direction
- Shock Resistance: 50G for 6 sides, 3 times each
- Solderability: >75% coverage in 5 seconds immersion at 245°C ±3°C
- Soldering Method: Manual, Max 350°C for 5 seconds
Buy the Multicomp Series Piano DIP Switch: MCNDP04V
Purchase the Multicomp Series 4-Position Piano DIP Switch MCNDP04V online today to benefit from reliable performance in your electrical and control applications. This switch features durable thermoplastic housing, gold-plated contacts, and a compact design suitable for various environments. With a rated service life of 2000 cycles, high insulation resistance, and support for a wide temperature range, it ensures long-lasting, dependable operation. Easy to install with manual soldering, this switch is ideal for industrial control, computer peripherals, and functional controls, supporting your project needs with quality and precision.
Order your Multicomp Series 4-Position DIP Switch MCNDP04V today and ensure reliable switching in your electronic control projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDP04V?
You can click on the BUY or RFQ button to purchase MCNDP04V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDP04V?
You can download the MCNDP04V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDP04V?
MULTICOMP PRO
