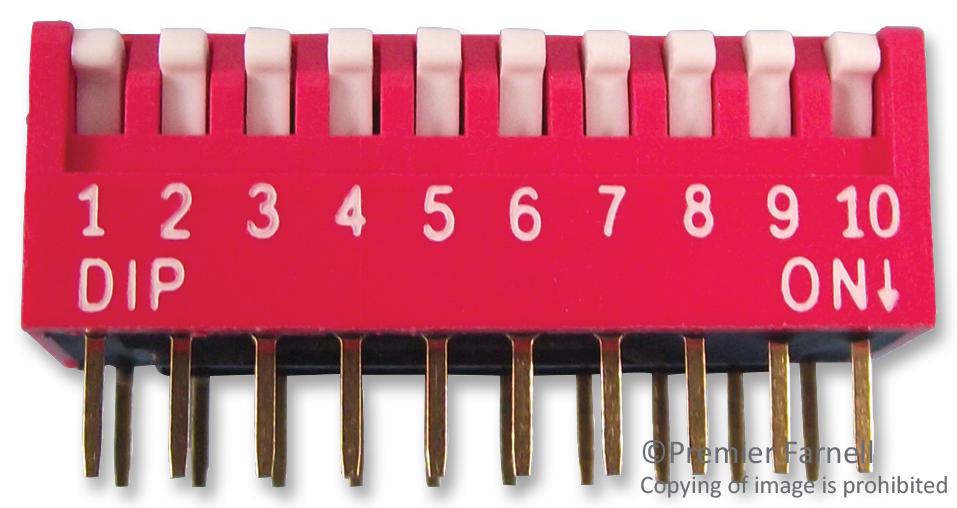

MULTICOMP PRO MCNDP10V Piano Type DIP Switch
The DIP switch is a piano-type, multi-position switch designed for industrial control, computer peripherals, and various control functions. It features thermoplastic components including PBT levers, sliders, and covers in white and red, with copper alloy and brass contacts plated with gold for reliable performance. Rated for 100mA at 50V DC for non-switching and 25mA at 24V DC for switching, it supports up to 2000 cycles of operation, with an operating temperature range of -40°C to +85°C. Its robust construction ensures durability and consistent switching performance in demanding environments.
MULTICOMP PRO MCNDP10V Piano Type DIP Switch Specifications:
- Lever: Thermoplastic PBT UL 94V-0 - White
- Slider: Thermoplastic PBT UL 94V-0 — White
- Cover: Thermoplastic PBT UL 94V-0 — Red
- Contact: Copper Alloy, Gold Plated
- Terminal: Brass, Gold Plated
- Base: Thermoplastic PA66 UL 94V-0 - Black
- Contact Rating: Non-Switching 100mA, 50V DC; Switching 25mA, 24V DC
- Contact Resistance: 50mΩ max.
- Insulation Resistance: ≥100MΩ at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 400gf max. (3.92N max.)
- Travel: 225°
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Soldering Temp: Max 350°C for 5 sec.
- Vibration: 10-55-10 Hz, 2 hours per direction
- Shock: 50G for 6 sides, 3 times per direction
- Solderability: >75% coverage, tin 96.5%, silver 3%, copper 0.5%
Buy the Multicomp Series Piano Type DIP Switch: MCNDP10V
Purchase the Multicomp series piano type DIP switch MCNDP10V online today and enjoy fast delivery of a high-quality switch. Its robust thermoplastic construction, gold-plated contacts, and multiple positions make it ideal for industrial control, computer peripherals, and numerous control functions. This switch offers a durable design with a lifespan of 2000 cycles, supporting demanding applications with an operating temperature range from -40°C to +85°C. Secure your project with a trusted switch ensuring reliable performance in various environments.
Buy Multicomp series MCNDP10V piano type DIP switch now and ensure reliable, durable switching for your control and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDP10V?
You can click on the BUY or RFQ button to purchase MCNDP10V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDP10V?
You can download the MCNDP10V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDP10V?
MULTICOMP PRO
