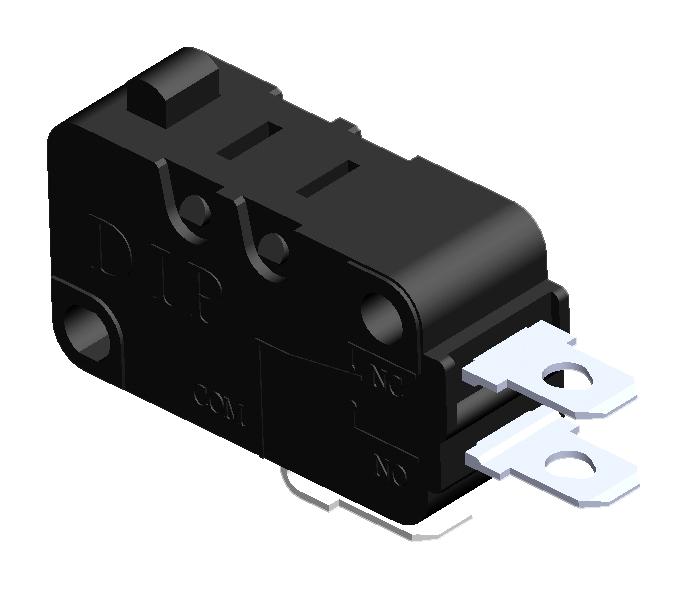

MULTICOMP PRO MP000788 Panel Mount Microswitch
The MP000788 is a high-quality panel mount snap action microswitch designed with a pin plunger actuator. It features a 5A, 250V AC SPDT configuration, offering reliable electrical switching with a mechanical durability of 1,000,000 cycles. Its compact design includes a pin plunger actuator with an operating force of up to 0.49N, overtravel of 4mm, and a pretravel of 1.2mm. Suitable for industrial and consumer applications, it provides excellent insulation resistance and dielectric strength, ensuring long-lasting performance in demanding environments.
MULTICOMP PRO MP000788 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 1,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: >100mΩ max
- Insulation Resistance: 100MΩ min (at 500V DC)
- Dielectric Strength: 600V AC (50Hz or 60Hz) for 1 minute
- Operating Frequency: Mechanical 120 operations/min max, Electrical 20 operations/min max
- Over Travel: 1.6mm Min.
- Operating Position: 15.2mm +1.2mm
- Pretravel: 4mm Max.
- Operating Force: 0.49N Max.
- Dimensions: 22.7mm length, 6.3mm width, actuator stroke 4mm, mounting hole diameter 4.8mm
- Actuator: Hinge Lever, Pin Plunger, Short Hinge Roller Lever
- RoHS Compliant
- Terminals: Solder and Quick-Connect options
Buy the Multicomp MP000788 – Reliable Panel Mount Microswitch for Industrial Applications
Secure your operations with the multicomp MP000788 panel mount microswitch, equipped with a pin plunger actuator. Designed for reliable switching with a 5A, 250V AC rating, it withstands over a million cycles, ensuring durability. Its compact size makes it ideal for installation in tight spaces. Suitable for industrial machinery, appliances, and automation applications, it offers excellent insulation resistance and dielectric strength. Purchase online today to benefit from fast shipping and trusted quality in control components.
Get multicomp MP000788 today—built for precision and long-lasting durability in industrial control and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000788?
You can click on the BUY or RFQ button to purchase MP000788 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000788?
You can download the MP000788 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000788?
MULTICOMP PRO
