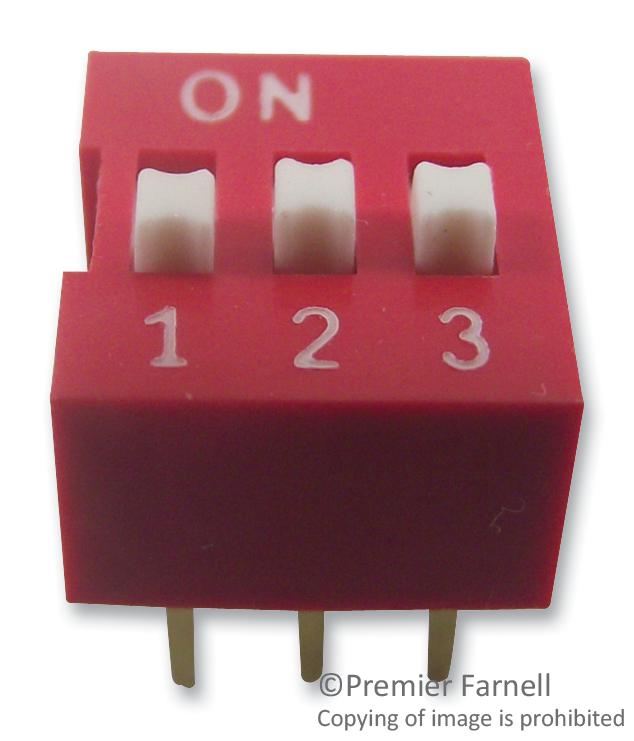

MULTICOMP PRO MCNDS03V DIP Switch
This slide type DIP switch features multiple positions, a raised actuator, and robust construction suitable for industrial control and electronic switching applications. Made with thermoplastic PBT UL 94V-0 for insulation and a copper alloy contact plated with gold for reliable electrical performance. It supports current ratings up to 100mA at 50V DC for non-switching and 25mA at 24V DC for switching. Designed for durability, it withstands 2000 operation cycles and operates effectively within -40°C to +85°C temperatures. Its precise dimensions and tested properties make it ideal for versatile electronic and industrial control systems.
MULTICOMP PRO MCNDS03V DIP Switch Specifications:
- Actuator: Raised actuator
- Cover: Thermoplastic PBT UL 94V-0, White or Red
- Contact Material: Copper Alloy, Gold Plated
- Terminal: Brass, Gold Plated
- Base: Thermoplastic PA66 UL 94V-0, Black
- Current Rating: Non-switching 100mA at 50V DC; Switching 25mA at 24V DC
- Contact Resistance: Max 50mΩ initially, Min 100MΩ insulation resistance
- Dielectric Strength: 500V AC for 1 minute, 1-minute test
- Operating Force: 1000gf max
- Travel: 2mm
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Shelf Life: 6 months
- Vibration & Shock Resistance: Meets MIL-STD-202F
- Soldering Temperature: Max 350°C for 5 seconds
- Solderability: Over 75% coverage, tin 96.5%, silver 3%, copper 0.5%
- RoHS Compliant
Buy the Buy multicomp DIP Switch Part Number MCNDS-03V Online
Get the multicomp SeriesMCNDS-03V DIP switch online today for your electronic and industrial control needs. Designed with durable thermoplastic insulation and gold-plated contacts, this slide type switch offers reliable on/off switching for multiple positions. Capable of handling 100mA at 50V DC and withstanding 2000 cycles, it operates effectively between -40°C and +85°C, ensuring long-lasting performance. Easy to install with precise dimensions, enjoy fast delivery and competitive pricing on this high-quality product, perfect for automation and control applications.
Order your multicomp SeriesMCNDS-03V DIP switch today and enjoy reliable performance for industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDS03V?
You can click on the BUY or RFQ button to purchase MCNDS03V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDS03V?
You can download the MCNDS03V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDS03V?
MULTICOMP PRO
