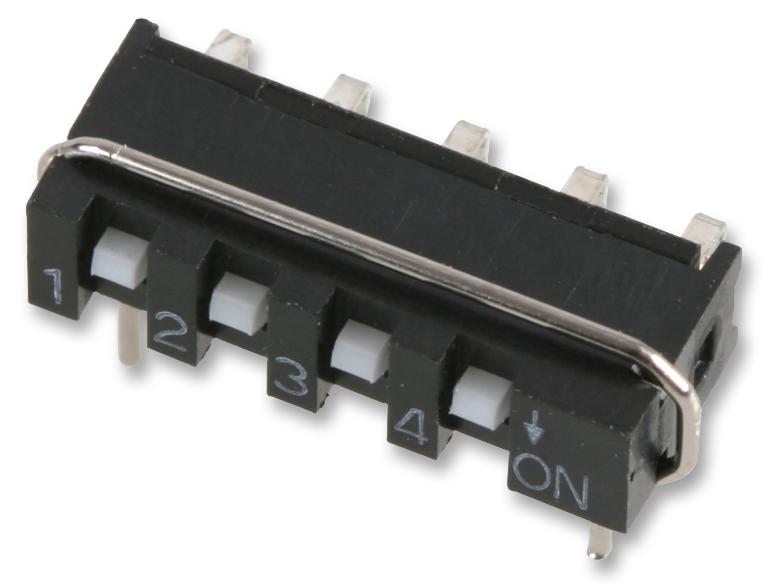

MULTICOMP PRO SIP04A SIP Switch
This SIP switch from the Multicomp Pro range is a reliable slide-type circuit component designed with a single in-line packaging, saving PCB space. It features a 4-pole, SPST contact arrangement, available in right-angle or straight models, suitable for compact electronic designs. With a contact rating of 10mA at 5V DC and an operating temperature range of 1-80°C, it offers durability with 500 switching cycles. The switch's dimensions are 12.7mm by 10.16mm for the right-angle model, making it ideal for industrial and electronic applications.
MULTICOMP PRO SIP04A SIP Switch Specifications:
- Contact Arrangement: SPST
- Terminal Type: Straight, Right Angle
- No. of Poles: 4, 6, 8 Pole
- Contact Rating: 10mA, 5V DC
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MO Min, 500V DC
- Dielectric Strength: 300V AC/1 minute
- Operating Force: 800gf max
- Operating Life: 500 cycles
- Operating Temperature: 1-80°C
- Storage Temperature: 1-80°C
- Dimensions: 12.7mm x 10.16mm (right angle), 17.78mm x 15.24mm (straight)
- RoHS Compliant: Yes
Buy the Multicomp Pro SIP04A – Reliable Circuit Switch for Industrial Applications
Upgrade your electronic assembly with the Multicomp Pro SIP Switch, offering 4-pole SPST contacts in compact in-line packaging. Designed for reliable switching, the switch features a contact rating of 10mA at 5V DC and supports up to 500 cycles of operation. Available in right-angle or straight models, it fits PCB space savings. Built to endure temperatures from 1°C to 80°C, this switch is perfect for industrial, automation, and control applications. Order now to ensure consistent performance and easy integration into your projects.
Buy Multicomp Pro SIP04A now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SIP04A?
You can click on the BUY or RFQ button to purchase SIP04A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SIP04A?
You can download the SIP04A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SIP04A?
MULTICOMP PRO
