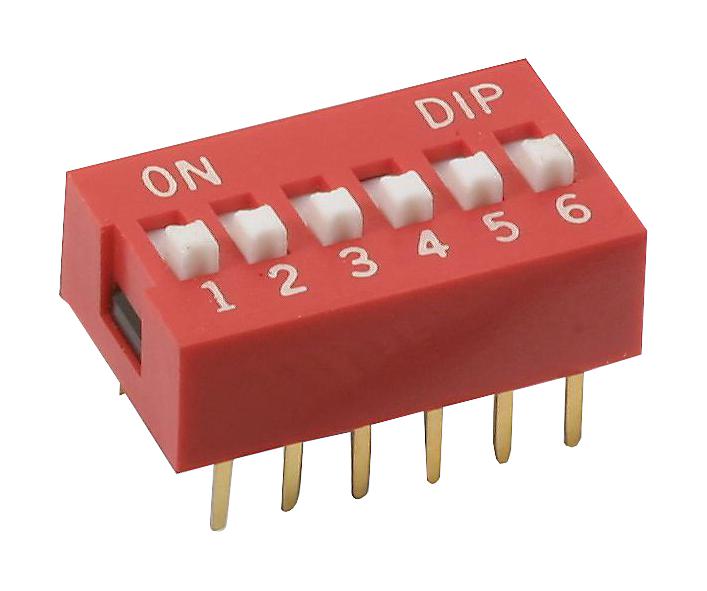

MULTICOMP PRO MCNDS06V DIP Switch
The DIP switch is a slide type, multicomp series 6-position switch designed for industrial control, computer peripherals, and various function controls. It features thermoplastic actuation and cover with copper alloy, gold-plated contacts and brass terminals, ensuring durability and reliable operation. Rated for 100mA, 50V DC in non-switching mode, and 25mA, 24V DC switching. It withstands temperature ranges from -40°C to +85°C and has an operating life of 2000 cycles, with a travel distance of 2mm, making it suitable for multiple electrical and electronic applications.
MULTICOMP PRO MCNDS06V DIP Switch Specifications:
- Actuator: Thermoplastic PBT UL 94V-0 — White
- Cover: Thermoplastic PBT UL 94V-0 — Red
- Contact Material: Copper Alloy, Gold Plated
- Terminal Material: Brass, Gold Plated
- Base Material: Thermoplastic PA66 UL 94V-0 - Black
- Current Rating: Non-Switching 100mA, 50V DC; Switching 25mA, 24V DC
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ Min. at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Travel: 2mm
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temperature: Max 350°C for 5 seconds
- Vibration Resistance: MIL-STD-202F Method 201A, 10-55-10 Hz, 1 min/cycle
- Shock Resistance: MIL-STD-202F Method 213B, 50G for 11ms, 6 sides, 3 cycles each
- Solderability: Min 75% coverage, immersion 5s at 245±3°C
- Durability: 2000 cycles at 15–20 cycles/min
- Physical Dimensions: 16.6mm length, 12.7mm width, 14.06mm height for 5-position model
Buy the Multicomp Series DIP Switch: 6-Position Slide Type MCNDS06V
Purchase the Multicomp Series DIP Switch with 6 positions today online to ensure reliable electrical connections and smooth switch operation. This slide type switch features gold-plated contacts rated for 50V DC and 100mA DC, ideal for various industrial control, computer peripherals, and electronic control applications. Made with thermoplastic materials for durability, it withstands temperatures from -40°C to +85°C. Easy to install, it offers a travel of 2mm, an operating life of 2000 cycles, and complies with RoHS standards, ensuring high-quality, eco-friendly functionality.
Buy Multicomp Series DIP Switch 6-Position MCNDS06V now and experience unmatched reliability and performance with durable switching for industrial control.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDS06V?
You can click on the BUY or RFQ button to purchase MCNDS06V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDS06V?
You can download the MCNDS06V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDS06V?
MULTICOMP PRO
