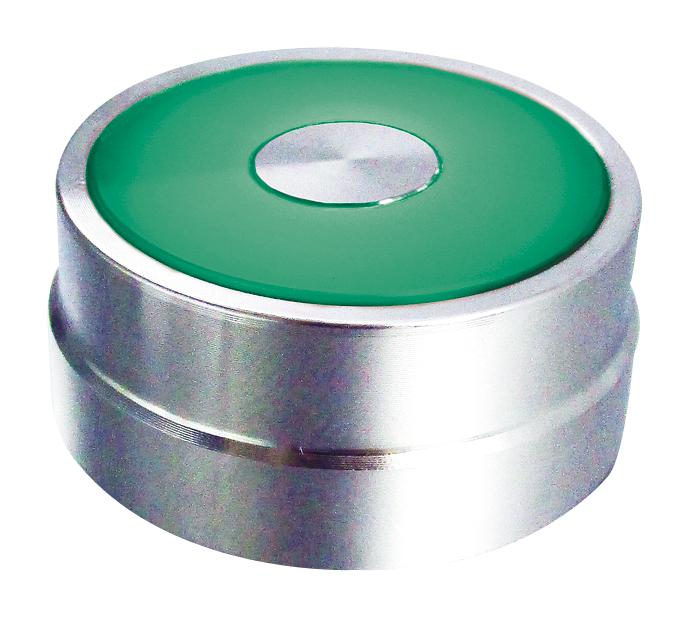

MULTICOMP PRO MC010972 Vandal Resistant Switch
The Flush Illuminated Vandal Resistant Switch features a metal bezel-ring and silhouette-ring design, suitable for mounting holes of 22mm and 30mm. It is equipped with silver contacts, and features LED illumination in green, red, or blue at 12V AC/DC. The switch offers high dielectric strength of up to 2000V AC, with a material finish of durable aluminum. It is rated for 600V and 210A, with IP65 protection, mechanical life of 1,000,000 operations, and electrical life of 100,000. Designed for industrial control applications requiring robust vandal-resistant switches, it is suitable for demanding environments with vibration and shock resistance.
MULTICOMP PRO MC010972 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colours: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC between live part and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ Min (500V DC)
- Operating Humidity: 45 to 85% RH
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 1,000 m/sec² damage limit, 100 m/sec² operating limit
- Mechanical Life: 1,000,000 momentary, 100,000 maintained
- Electrical Life: 100,000 operations
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the MultiComp Series Vandal Resistant Switch: MC010972
Purchase the vandal-resistant switch online today to ensure rugged, reliable control in demanding industrial environments. Featuring high durability, multiple LED colours, and IP65 protection, this switch is perfect for applications requiring vandal resistance and longevity. Easily install it with mounting hole options of 22mm or 30mm. Its high electrical and mechanical life ratings guarantee long-term performance, making it an essential component for industrial control panels, automation, and safety systems. Order now and improve your equipment’s resilience and operational efficiency.
Buy MultiComp MC010972 now and experience unmatched reliability and performance with durable vandal-resistant design and high current rating.
