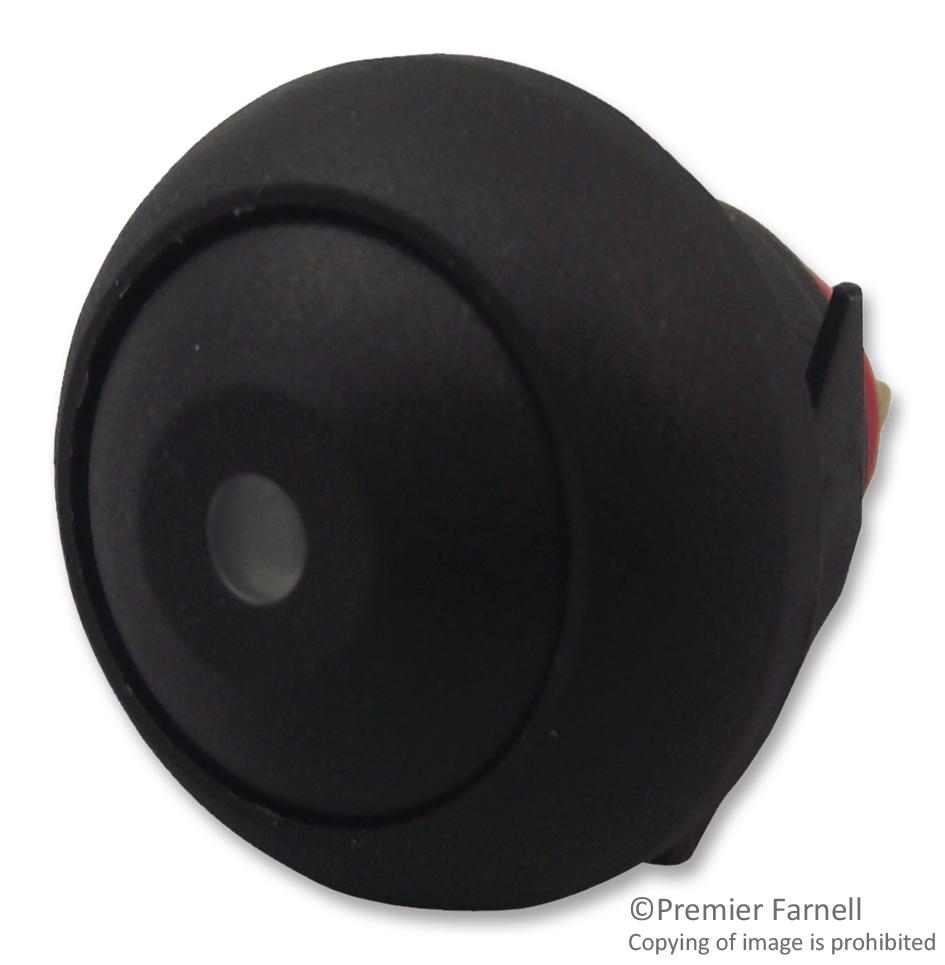

MULTICOMP PRO MCPAS6B1M1CES25L3 Illuminated Switch
The MCPA Series switches by multicomp are versatile, water-resistant electronic switches ideal for industrial and consumer applications. They feature various illumination options, including red, yellow, green, and blue, with built-in LEDs providing clear indication. These switches are IP67 rated, ensuring protection against immersion up to 1 meter for 30 minutes. They support manual and wave soldering processes at recommended temperatures. Designed for panel mounting, they come in round and square types, with durable contact mechanisms rated for up to 500,000 cycles. Suitable for a broad range of automation and control systems.
MULTICOMP PRO MCPAS6B1M1CES25L3 Illuminated Switch Specifications:
- Current / Voltage Rating: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC max.
- Insulation Resistance: 1GO min. at 500V DC
- Dielectric Strength: 1,000V AC rms, 1,500V AC rms for metal material
- Electrical Life At Full Load: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: B1 series: 0.8 mm (.031) min. to 1.8 mm (.071) max., B2 series: 1.5 mm (.059) min. to 4 mm (.157) max.
- Total Travel: 1.5 mm (.059)
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Soldering Temperature: Max 350°C for 5 seconds
- Soldering Processes: Manual at 350°C, Wave at 260 ± 5°C for max 5 sec., Vapor phase
- Mechanical Life: 21,000,000 cycles
- IP Rating: IP67 for whole series
- Mounting Type: Panel mounting with hardware options
- LED Voltage and Wave-Length: Various colors with forward voltage from 1.7V to 3.6V and viewing angles from 460 to 660
- Dimensions: Round and square models with sizes specified in millimeters
- Certifications: RoHS compliant
Buy the Buy multicomp Switch Part Number MCPAS6B1M1CES25L3 Online
Order the multicomp illuminated switch MCPAS6B1M1CES25L3 online today and benefit from high durability, IP67 protection, and long cycle life. This versatile switch features multiple LED colors, supporting manual and wave soldering processes at recommended temperatures. Designed for panel mounting, it offers reliable electrical performance up to 500,000 cycles, suitable for various automation, control, and industrial applications. Easy to install with hardware options, this switch enhances operational efficiency and safety in demanding environments.
Buy multicomp MCPAS6B1M1CES25L3 now and experience durable, water-resistant illuminated switching solutions ideal for industrial control.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPAS6B1M1CES25L3?
You can click on the BUY or RFQ button to purchase MCPAS6B1M1CES25L3 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6B1M1CES25L3?
You can download the MCPAS6B1M1CES25L3 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPAS6B1M1CES25L3?
MULTICOMP PRO
