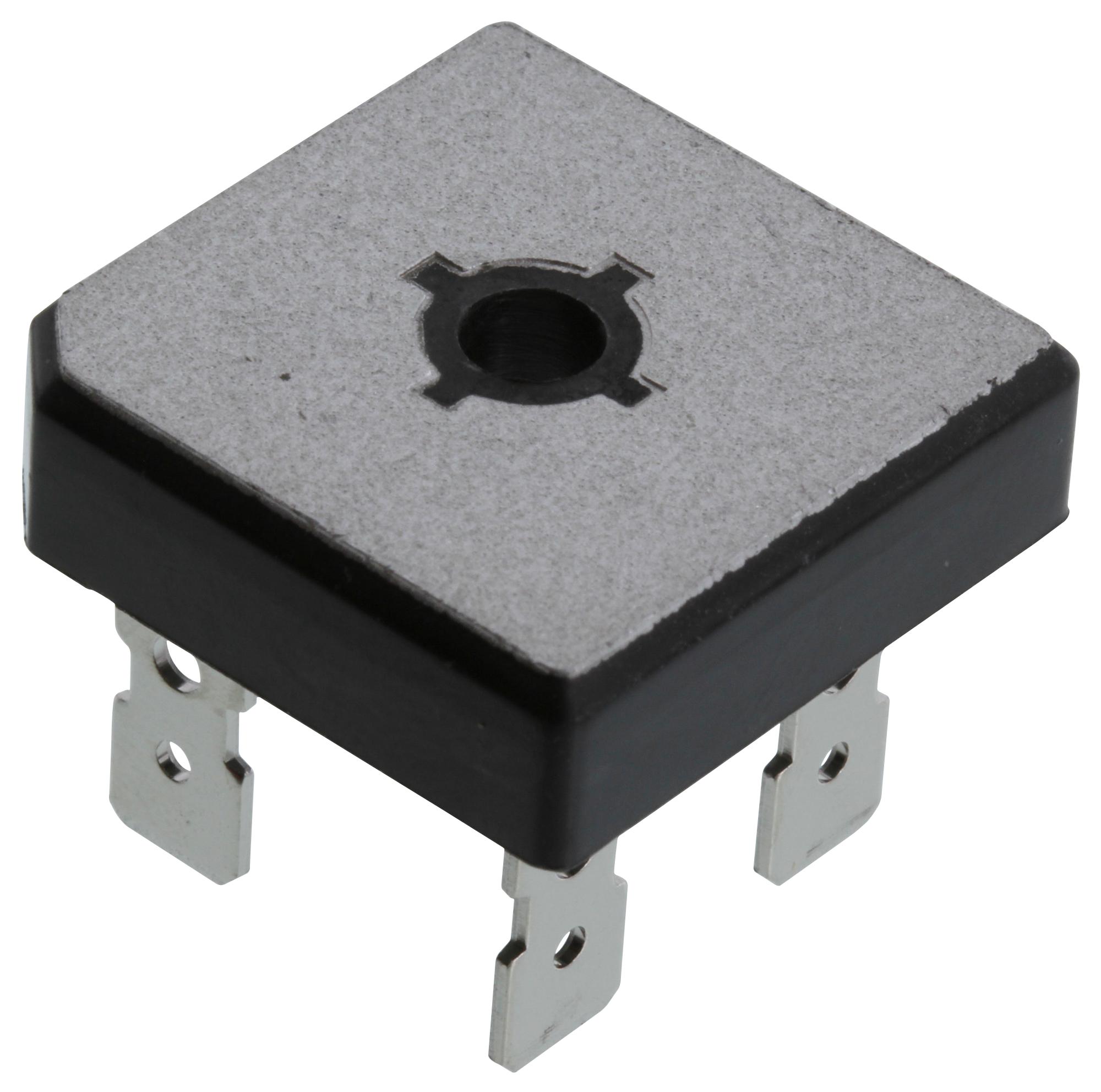

MULTICOMP PRO GBPC1506 Bridge Rectifier
The GBPC1506 series is a high-performance bridge rectifier designed for industrial power conversion and control systems. Constructed with a plastic body and integrally molded heatsink, these rectifiers ensure excellent heat dissipation and low thermal resistance. Featuring surge overload ratings up to 400A and isolations over 2,500V from case to lead, they are suitable for resistive, inductive, and capacitive loads, with derating for capacitive loads. The series offers reliable reverse voltage handling ranging from 50V to 1,000V, high surge current capacity, and robust construction with solderable terminals compliant with MIL-STD-202.
MULTICOMP PRO GBPC1506 Bridge Rectifier Specifications:
- Package Material: Plastic with integrally molded heatsink
- Surge Overload Rating: 300 to 400A
- Terminal: Solderable per MIL-STD-202, method 208
- Max Recurrent Peak Reverse Voltage: 600V
- Max RMS Voltage: 420V
- Max DC Blocking Voltage: 600V
- Maximum Forward Surge Current: 35A
- Peak Forward Voltage Drop: 1.4V
- Maximum Reverse Current: 5mA
- Thermal Resistance: 1.5°C/W
- Operating Temperature Range: -50°C to +150°C
- Dimensions: Hole for #10 screw, 0.22 in (6.59mm), length approximately 0.892 in (22.6mm)
- Isolation Voltage: Over 2500V from case to lead
- Maximum Average Forward Current: 35A
- Material: High-temperature soldering up to 260°C for 10 seconds
Buy the Multicomp GBPC1506 – Reliable Bridge Rectifier for Industrial Applications
Purchase the Multicomp GBPC1506 bridge rectifier now for efficient power conversion and reliable performance in industrial equipment. With its high surge ratings of up to 400A and voltage handling up to 600V, it ensures robust operation under demanding conditions. The sturdy plastic body, integrally molded heatsink, and solderable terminals offer excellent heat dissipation and ease of installation. Ideal for resistive, inductive, and capacitive loads, this high-quality rectifier is essential for power supplies, motor drives, and control systems, providing durable and efficient rectification for industrial and electronic applications.
Get Multicomp GBPC1506 today—built for high current loads and long-lasting durability in power conversion.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC1506?
You can click on the BUY or RFQ button to purchase GBPC1506 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC1506?
You can download the GBPC1506 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC1506?
MULTICOMP PRO
