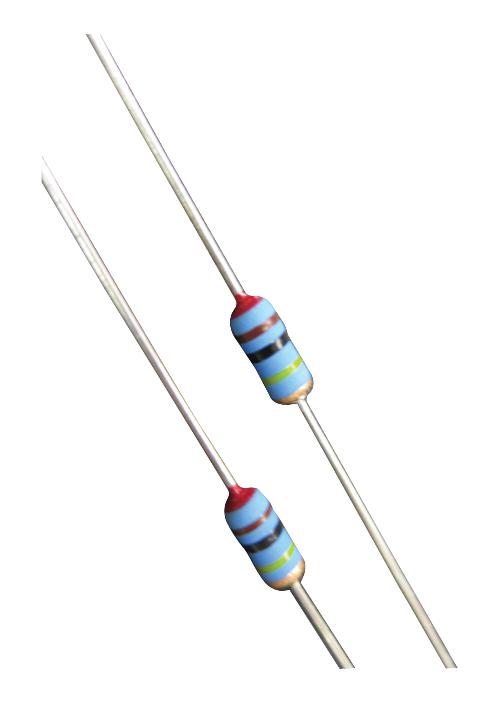

MULTICOMP PRO MCPMR01TJ0124A50 Power Metal Fixed Resistor
Power metal fixed resistors with a 1W power rating and 5% tolerance, designed for reliable performance in electronic circuits. Constructed with ceramic bodies, Cu-Ni alloy resistance wire, and steel end caps, these resistors support operating temperatures from -55°C to +155°C and have a maximum working voltage of 350V. Ideal for high-power applications requiring precision and durability, they meet RoHS compliance and feature non-flame insulation coating, with resistance ranges from 0.560Ω to 1MΩ. Suitable for various industrial and electronic devices, these resistors ensure stable electrical performance under diverse conditions.
MULTICOMP PRO MCPMR01TJ0124A50 Power Metal Fixed Resistor Specifications:
- Power Rating: 1W at 70°C, derated above this temperature
- Max. Working Voltage: 350V
- Max. Overload Voltage: 400V
- Resistance Range: 0.560Ω to 1MΩ
- Resistance Tolerance: ±5%
- Operating Temperature Range: -55°C to +155°C
- Dielectric Withstanding Voltage: 350V
- Construction: Ceramic rod body, Cu-Ni alloy resistance wire, steel end caps
- Coating: Insulated, non-flame epoxy resin, sea-blue color
- Lead Material: Annealed copper wire coated with tin
- Resistance Coefficient: +350 to +400 PPM/°C
- Dimension: Length approximately 25mm, diameter 0.54mm, lead length 6.5mm
- RoHS Compliant: Yes
Buy the Multicomp Series Power Metal Fixed Resistor: MCPMR01TJ0124A50
Order the Multicomp Power Metal Fixed Resistor MCPMR01TJ0124A50 online today and ensure reliable performance in your electronic projects. Designed for high power and durability, this 1W resistor features a ceramic body, RoHS compliance, and operates over a temperature range from -55°C to +155°C. Perfect for industrial and electronic devices, it supports voltage up to 350V and resistance from 0.560Ω to 1MΩ with ±5% tolerance. Buy online now for fast delivery and competitive prices, ensuring your systems operate smoothly and efficiently.
Get Multicomp series power metal fixed resistor MCPMR01TJ0124A50 today—built for precision and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPMR01TJ0124A50?
You can click on the BUY or RFQ button to purchase MCPMR01TJ0124A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPMR01TJ0124A50?
You can download the MCPMR01TJ0124A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPMR01TJ0124A50?
MULTICOMP PRO
