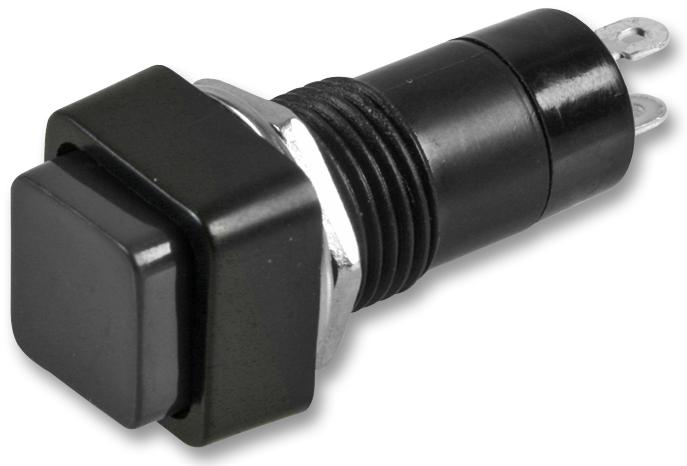

MULTICOMP-PRO MCPS23A2 Pushbutton Switch
This pushbutton switch features a non-illuminated, square actuator with a single-pole single-throw (SPST) contact configuration, ideal for panel mounting. It has quick connect tab terminals, rated at 1A, 125V AC/250V AC, with a contact resistance of up to 30mΩ. The switch's insulation resistance exceeds 100MQ at 500V DC, and it withstands 1000V AC for one minute. Designed for durability, it offers a minimum electrical life of 5,000 cycles and a mechanical life of at least 10,000 cycles, with a push force over 0.3kg. Contact materials include copper alloy, silver, or gold plating. The dimensions are compact for easy integration in control panels and machinery, making it suitable for industrial and automation applications.
MULTICOMP-PRO MCPS23A2 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-illuminated, Square
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC/250V AC
- Contact Resistance: Up to 30mΩ
- Insulation Resistance: Min. 100MQ at 500V DC
- Dielectric Strength: 1000V AC for 1 minute
- Electrical Life: Minimum 5,000 Cycles
- Mechanical Life: Minimum 10,000 Cycles
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: > 0.3kg
- Dimensions: Compact for panel mounting
- Color Options: Black, Red, Yellow, Green (various models)
Buy the Buy Multicomp Non-Illuminated Square Pushbutton Switch Part Number MCPS23A2 Online
Get the high-quality non-illuminated square pushbutton switch from Multicomp with quick connect terminals, rated at 1A and available in multiple colors. Designed for durability with over 10,000 mechanical cycles, it’s perfect for control panels, machinery, and automation systems. Easy to install with compact dimensions, this switch ensures reliable operation under demanding industrial conditions. Purchase online today to secure an efficient and dependable component for your control solutions, backed by trusted quality standards and fast delivery.
Order your Multicomp SeriesMCPS23A2 non-illuminated square pushbutton switch today and ensure reliable control in your industrial and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPS23A2?
You can click on the BUY or RFQ button to purchase MCPS23A2 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPS23A2?
You can download the MCPS23A2 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPS23A2?
MULTICOMP-PRO
