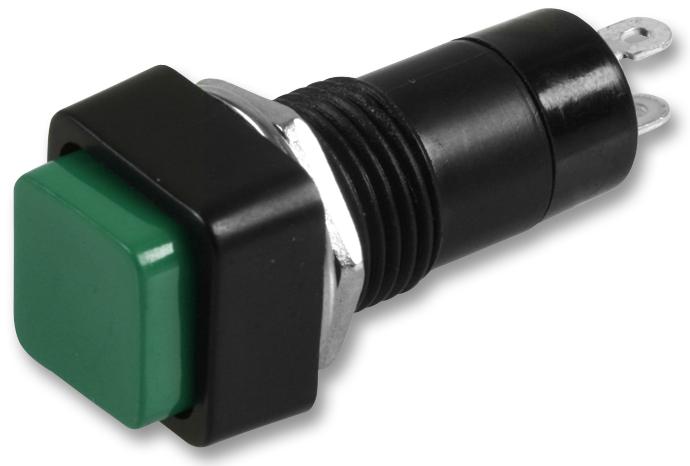

MULTICOMP-PRO MCPS23B6 Pushbutton Switch
The non-illuminated square pushbutton switch is designed for panel mounting with a SPST contact configuration. It features quick connect tabs for easy wiring, with a contact rating of 1A at 125V or 250V AC. The switch has a contact resistance of up to 30mΩ, insulation resistance of at least 100MQ DC, and dielectric strength of 1000V AC for 1 minute. It supports a minimum electrical life of 5,000 cycles and mechanical life of 10,000 cycles, with push force exceeding 0.3kg. Available in multiple colors, it is suitable for various industrial and control applications.
MULTICOMP-PRO MCPS23B6 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-Illuminated, Square
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC/250V AC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 100MQ Min., 500V DC
- Dielectric Strength: 1000V AC for 1 minute
- Electrical Life: 5,000 Cycles Min
- Mechanical Life: 10,000 Cycles Min
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: > 0.3kg
- Dimensions: Not specified, suitable for panel mounting
- Colors: Black, Red, Yellow, Green
Buy the Buy Multicomp Non-Illuminated Square Pushbutton Switch Part Number MCPS23B6 Online
Purchase the high-quality Multicomp Non-Illuminated Square Pushbutton Switch MCPS23B6 online today. Ideal for industrial control panels, it features quick connect terminals, a robust contact rating of 1A at 125/250V AC, and an IP-rated design for durability. Perfect for applications requiring reliable on-off switching with a mechanical life of 10,000 cycles and electrical life of 5,000 cycles, this switch is available in multiple colors for convenience and enhanced visibility. Ensure dependable operation in your automation projects by ordering online now.
Order your Multicomp SeriesMCPS23B6 durable square pushbutton switch today and enhance your control panel with reliable switching performance.
