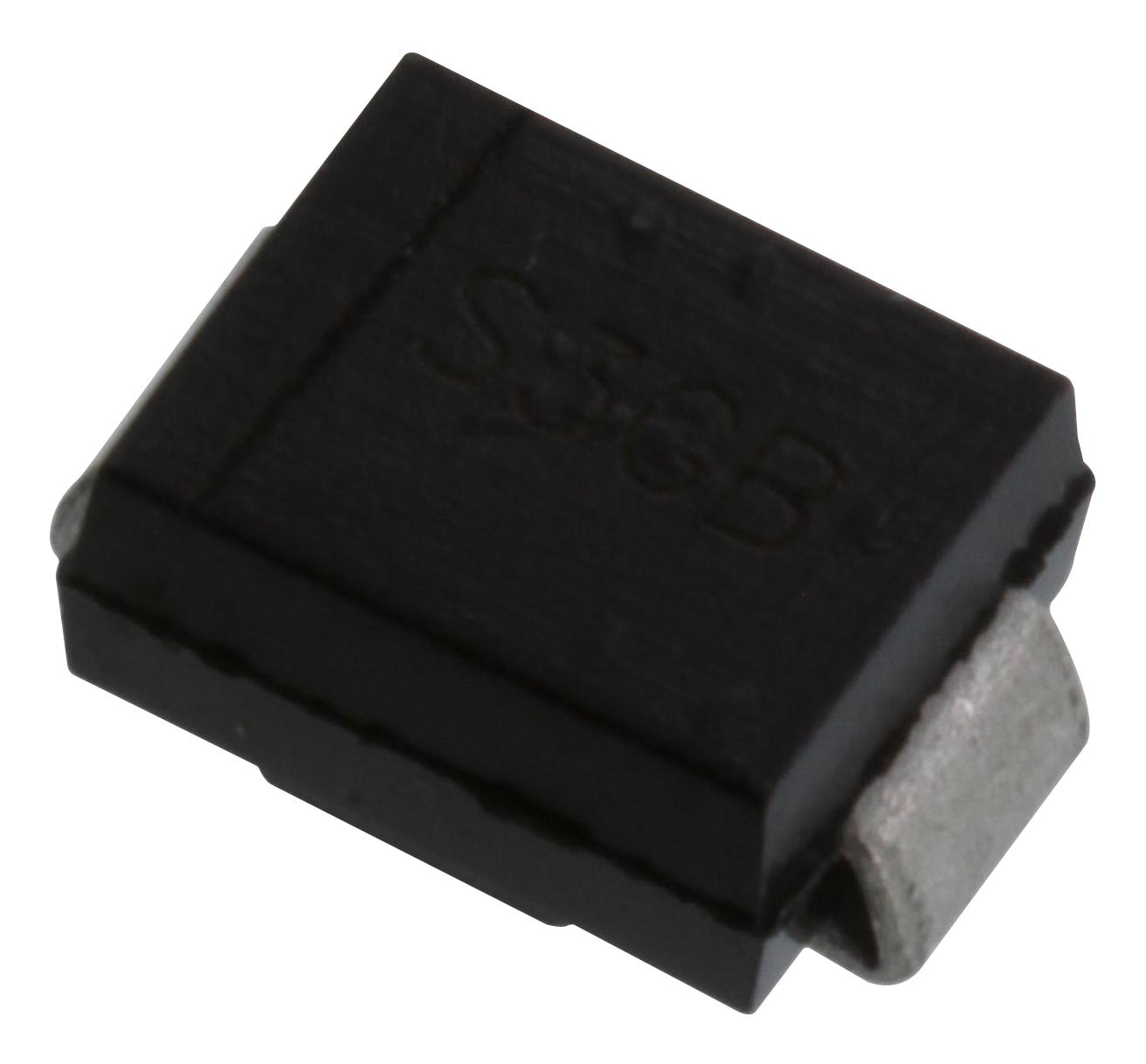

MULTICOMP PRO S3GB Rectifier Diode
This surface mount glass passivated rectifier diode offers high current capability with low forward voltage drop and reverse leakage current, making it ideal for power rectification in industrial and electronic applications. Featuring a molded plastic case with UL 94V-0 flammability classification, it supports a maximum forward current of 3A and a peak reverse voltage up to 1000V. Suitable for various surface-mounted applications, it provides reliable performance at elevated temperatures up to 150°C, ensuring efficiency and durability in demanding environments.
MULTICOMP PRO S3GB Rectifier Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 200V, 400V, 1000V
- Maximum RMS Voltage VeMs: 140V, 280V, 700V
- Maximum DC Blocking Voltage Voc: 200V, 400V, 1000V
- Maximum Average Forward Rectified Current: 3A at 75°C
- Peak Forward Surge Current: 100A for 8.3ms single half sine-wave
- Maximum Forward Voltage at 3A DC: 1.41V
- Maximum Reverse Current at 25°C: 5μA
- Operating Temperature Range: -55°C to +150°C
- Junction Capacitance: 40 pF
- Thermal Resistance Junction to Lead: 10°C/W
- Thermal Resistance Junction to Ambient: 50°C/W
- Case: Molded Plastic, Surface Mount SMB package
- Weight: 0.007 ounces (0.21 grams)
- Dimensions: Length approximately 0.185 inches (4.70 mm), width 0.096 inches (2.44 mm)
Buy the Multicomp 1000V S3MB+ – Reliable Rectifier for Industrial Applications
Purchase the Multicomp 1000V Rectifier Diode today online and ensure reliable power conversion for your industrial or electronic projects. Featuring a maximum current of 3A and a peak reverse voltage of up to 1000V, this surface mount device provides low forward voltage and excellent thermal performance. Made with UL 94V-0 rated plastic, it guarantees safety and durability even at operating temperatures up to 150°C. Perfect for power supplies, rectification circuits, and industrial equipment, order now for quick delivery and technical reliability.
Get Multicomp 1000V S3MB+ today—built for precision, high current capacity, and long-lasting durability in power rectification.
Frequently Asked Questions
Where can I buy MULTICOMP PRO S3GB?
You can click on the BUY or RFQ button to purchase S3GB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part S3GB?
You can download the S3GB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of S3GB?
MULTICOMP PRO
