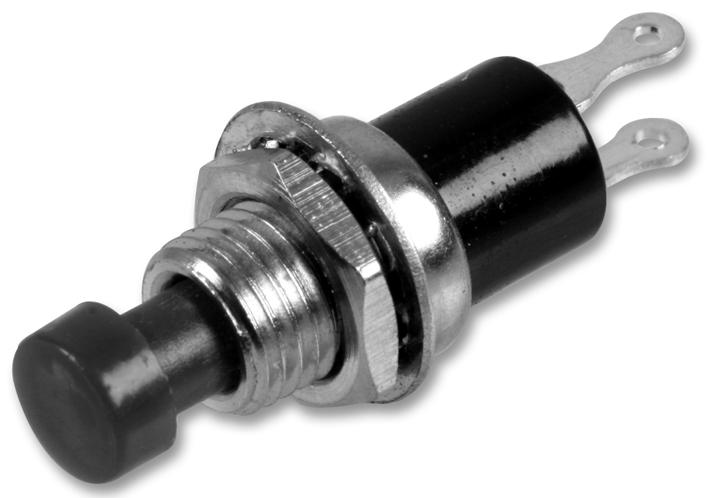

MULTICOMP-PRO MCPS29C2 Miniature Pushbutton Switch
The miniature pushbutton switch offers reliable SPST on-off operation with a non-illuminated, round actuator design suitable for panel mounting. Featuring quick connect tabs, it supports a current rating of 1A at 125V AC and 0.5A at 250V AC, making it ideal for industrial control systems. Its copper alloy terminals, silver or gold plating, ensure excellent conductivity and durability. The switch withstands 5,000 electrical cycles and 10,000 mechanical cycles, with a push force of over 0.3kg, and can be soldered at 240°C for 3 seconds for secure installation.
MULTICOMP-PRO MCPS29C2 Miniature Pushbutton Switch Specifications:
- Contact Configuration: SPST, Push On-Off
- Actuator: Non-illuminated, Round
- Terminal: Quick Connect Tab
- Rating: 1A, 125V AC / 0.5A, 250V AC
- Contact Resistance: 20mΩ or less at 2.5V DC, 1A
- Insulation Resistance: 100MQ or more at 500V DC
- Dielectric Strength: 1000V AC for 1 minute
- Electrical Life: 5,000 Cycles Min.
- Mechanical Life: 10,000 Cycles Min.
- Terminal Material: Copper Alloy, Silver or Gold Plated
- Push Force: > 0.3kg
- Soldering Temperature: 240°C for 3 seconds
Buy the Miniature Pushbutton Switches – Reliable SPST for Industrial Applications
Enhance your control panel with this miniature pushbutton switch, designed for reliability and durability in industrial applications. Its non-illuminated, round actuator with quick connect tabs makes installation straightforward. Rated at 1A/125V AC, it withstands significant cycling with 10,000 mechanical and 5,000 electrical cycles. Crafted from durable copper alloy with silver or gold plating, it ensures excellent conductivity. Perfect for panel mounting in control or automation systems, this switch offers robust performance for demanding environments.
Get Multicomp Pro MCPS29C2 today—built for precision and long-lasting durability in control systems.
