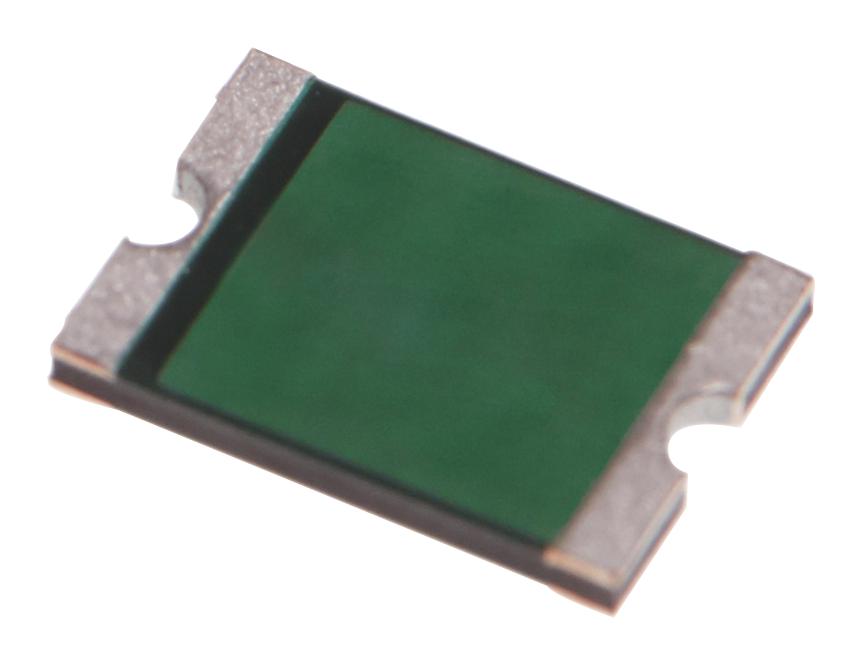

MULTICOMP PRO MC011394 PTC Resettable Fuse
The PTC Resettable Fuse is a surface-mount solid-state device designed for high-density electronic boards, offering rapid trip times, RoHS compliance, halogen-free materials, and operation within -40°C to +85°C. It features current ratings from 0.3A to 7A, maximum voltages up to 60V DC, and durable pure tin termination pads. Suitable for overcurrent protection, it provides reliable, reflow-solderable, self-resetting functionality with fast response times, making it ideal for circuit protection in compact electronic assemblies.
MULTICOMP PRO MC011394 PTC Resettable Fuse Specifications:
- Operation Current: 0.3A to 7A
- Maximum Voltage: 6V to 60V DC
- Temperature Range: -40°C to +85°C
- Termination Pad Material: Pure Tin
- Dimensions: Length varies with part number, approximately 6.73 mm to 7.98 mm in length
- Operating Voltage Max. (Vmax): Up to 60V DC
- Hold Current: 0.75A to 5A depending on model
- Trip Current Range: 1.5A to 8A
- Power Dissipation (Pd): Approx. 0.18W to 0.5W
- Resistance at 23°C (Ri): 0.035Ω to 0.18Ω
- RoHS Compliant, Halogen Free
- Soldering: Suitable for reflow process, max peak temperature 260°C
- Material: Flame-retardant, RoHS compliant
- Pad Layout: Nominal dimensions A=5.1mm, B=2.3mm, C=5.6mm
- Profile: Lead-free reflow characteristics, ramp-up rate 3°C/sec max
Buy the Buy AVNET PTC Resettable Fuse Part Number MC011394 Online
Secure your electronic projects with the AVNET PTC Resettable Fuse MC011394, engineered for fast trip times, high reliability, and safe overcurrent protection. Designed for surface mounting, it can withstand peak temperature profiles up to 260°C and operate within -40°C to +85°C. Its RoHS compliance ensures environmentally friendly manufacturing, while pure tin terminals promise strong, corrosion-resistant connections. Ideal for use in compact, high-density circuit boards, this fuse provides automatic reset after overcurrent events, ensuring continuous device protection and reducing maintenance needs. Order online today for dependable circuit safety.
Get AVNET PTC Resettable Fuse MC011394 today—optimized for circuit protection and reliable performance in electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011394?
You can click on the BUY or RFQ button to purchase MC011394 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011394?
You can download the MC011394 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011394?
MULTICOMP PRO
