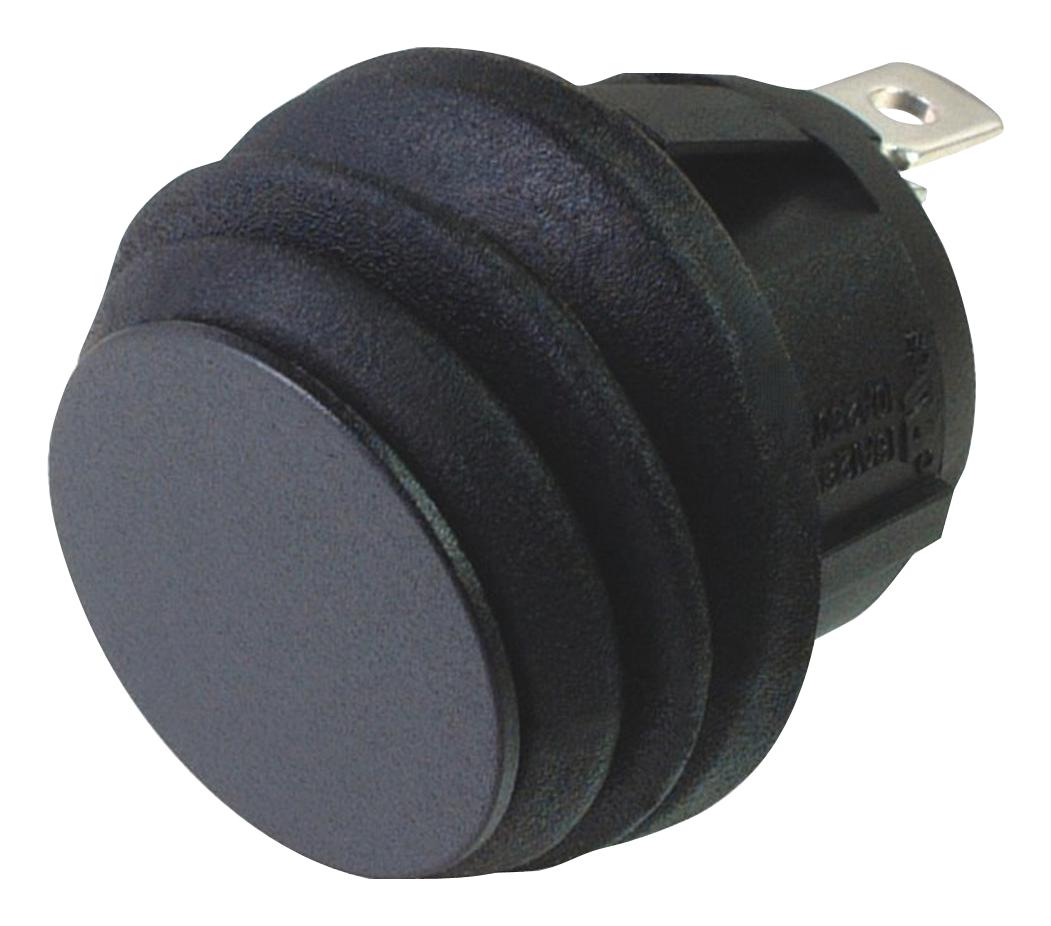

MULTICOMP-PRO MCR13112A802 Round Panel Switch
Non-illuminated round rocker switch with a 2P, SPST, on-off configuration designed for panel mounting. Made with nylon 6.6 frame, PC actuator, and waterproof silicone rubber. Features quick connect terminals, 10A at 125/250V AC ratings, and IP65 waterproof protection. Suitable for industrial applications requiring reliable switching with high insulation resistance of 100MQ min. at 500VDC, contact resistance of 50mQ max, dielectric strength of 1500V AC/1 minute, and operating temperature from -25°C to 85°C. Compact design with dimensions around 25mm, tolerances +0.3mm.
MULTICOMP-PRO MCR13112A802 Round Panel Switch Specifications:
- Switch Function: 2P, SPST, On-Off
- Switch Mounting: Panel
- Switch Terminal: Quick Connect
- Actuator Type: Round
- Ratings: 10A (4A) 125/250V AC, 20A 14V DC, 10A/28V DC, 16A/125V AC, 10A/250V AC
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 100MQ Min. @ 500VDC
- Dielectric Strength: 1500V AC/1 minute
- Operating Temperature: -25°C to 85°C
- Frame Material: Nylon 6.6, Black
- Actuator Material: PC, Black
- Waterproof Rubber: Silicone, Black
- Terminals: Copper Alloy, Silver Plated
- Waterproof Degree: IP65
- Dimensions: Approx. 25mm, Tolerance +0.3mm
Buy the Multicomp Pro MCR13112A802 – Reliable Round Panel Switch for Industrial Applications
Order the round non-illuminated panel switch from Multicomp Pro now to enhance your industrial control panels. Its IP65 waterproof design, durable nylon and silicone construction, and reliable electrical ratings make it perfect for demanding environments. With easy quick connect terminals and a compact size, this switch offers straightforward installation and long-lasting performance. Ensure your machinery operates smoothly with this high-quality, robust switch that meets industrial specifications and safety standards, available for immediate online purchase.
Buy Multicomp Pro MCR13112A802 now and experience unmatched reliability and performance in industrial switching solutions.
