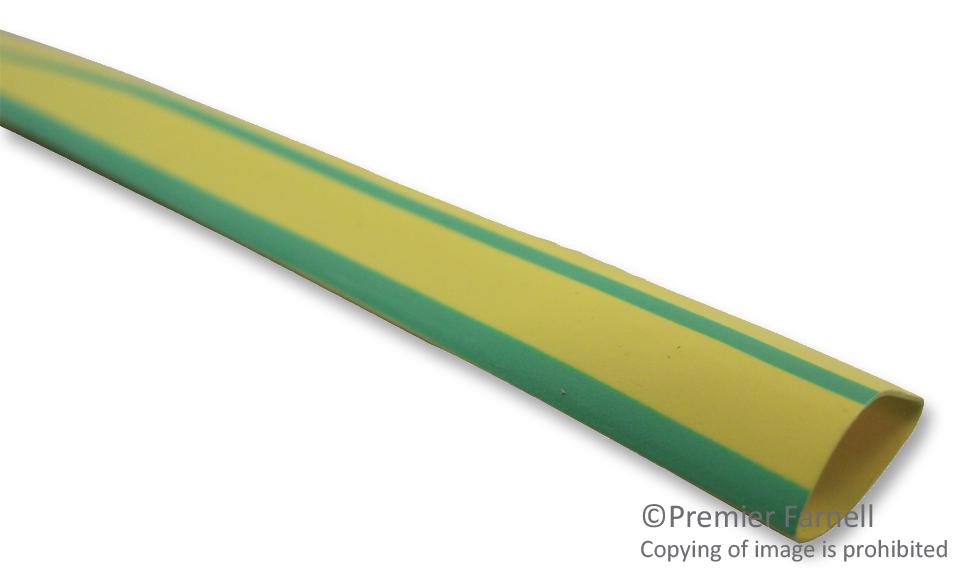

MULTICOMP-PRO PP002822 Heat Shrink Tubing
This 2:1 ratio normal wall heat shrink tubing is halogen-free, flexible, and shrinks at lower temperatures, suitable for protecting temperature-sensitive components like wires and cables. Made from radiation cross-linked polyolefin, it withstands operating temperatures from -55°C to +125°C, with a minimum shrink temperature of 70°C and full recovery at 120°C. The tubing provides excellent mechanical and electrical performance, including high tensile strength of 210.4 MPa, elongation of 2200%, dielectric strength of 215 kV/mm, and resistances to heat aging, cracking, and corrosion. Available in diverse colors and sizes, it meets RoHS and Sony standards.
MULTICOMP-PRO PP002822 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10⁴ Ohm-cm
- Color: Black, Brown, Blue, White, Red, Yellow, Green, Grey, Clear
- Size Range (internal diameter): 1.6mm to 50.8mm
- Length: 5m to 100m reels
- Flammability: FMVSS302 Pass
- Application: Electrical insulation, wire protection, component shielding
Buy the Pro-Power PP002822 – Reliable Heat Shrink for Industrial Applications
Purchase the premium heat shrink tubing online today—engineered for reliable electrical insulation, mechanical protection, and easy installation. Our tubing offers flexible, halogen-free formulation with excellent thermal, electrical, and mechanical performance. Suitable for protecting cables, wires, and sensitive components in demanding environments, it shrinks uniformly at low temperatures and withstands extreme conditions from -55°C to +125°C. Optimize your projects with durable, high-quality tubing available in a variety of sizes and colors, delivered quickly for your convenience.
Get Pro-Power PP002822 today—built for precision and long-lasting durability, perfect for electrical insulation and cable protection.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002822?
You can click on the BUY or RFQ button to purchase PP002822 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002822?
You can download the PP002822 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002822?
MULTICOMP-PRO
