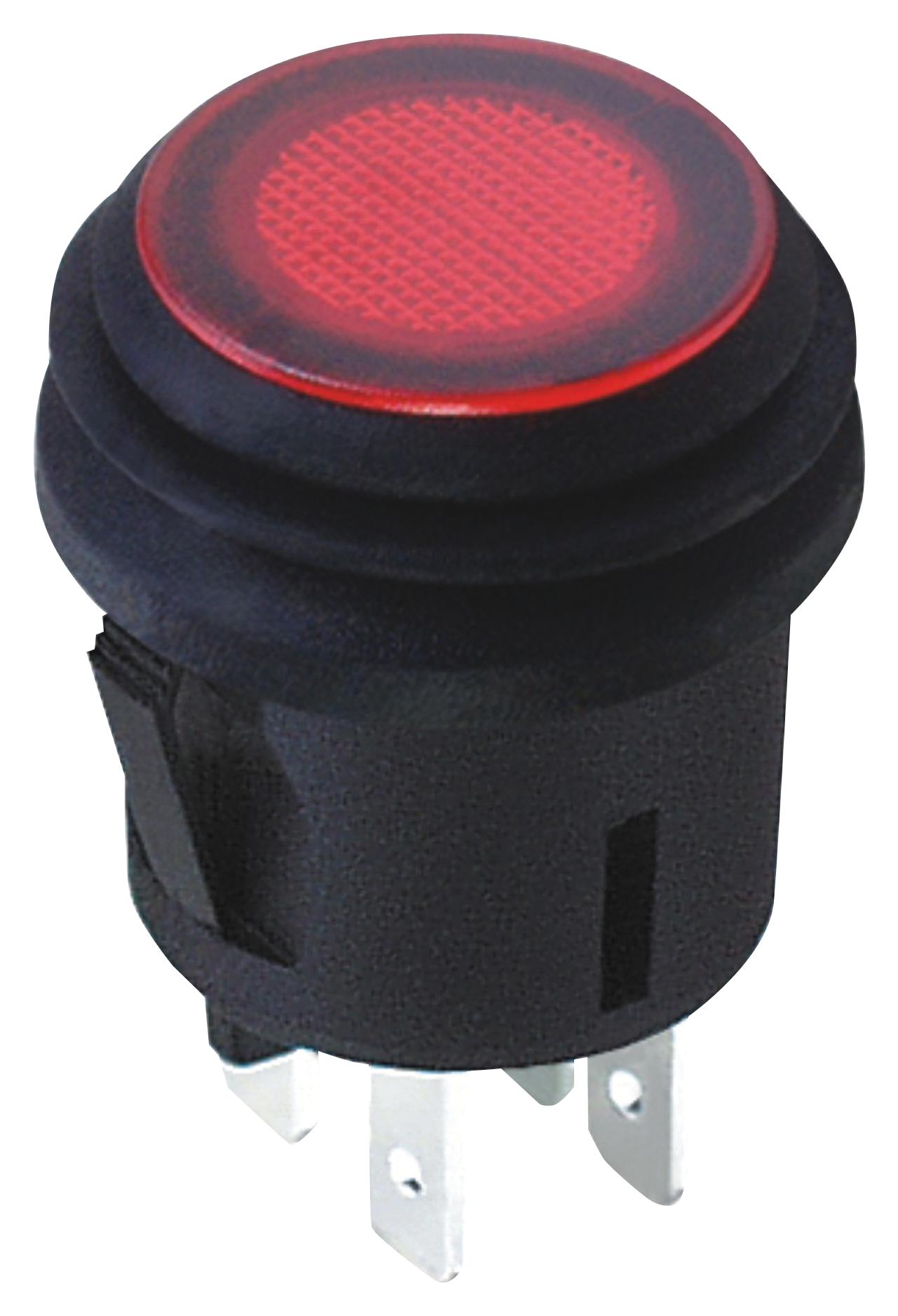

MULTICOMP-PRO MCR13527D2L02 Illuminated Pushbutton Switch
The illuminated pushbutton switch is a round, panel-mount device featuring 4P, SPST, on-off functions with independent LED illumination in red. It supports a current rating of 20A at 12V DC, with a high dielectric strength of 1500V AC for 1 minute and insulation resistance of at least 100MQ. Made with durable nylon and PC materials, it includes silver-plated copper terminals, waterproof silicone rubber, and is suitable for industrial control panels. Their compact design and robust specs ensure reliable operation in various environments.
MULTICOMP-PRO MCR13527D2L02 Illuminated Pushbutton Switch Specifications:
- Switch Function: 4P, SPST, On-Off with independent LED
- Mounting: Panel
- Terminal: Quick Connect, Copper Alloy, Silver Plated
- Actuator: Round, Illuminated
- Illumination Color: Red
- Ratings: 20A/12V DC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MQ Min. @ 500V DC
- Dielectric Strength: 1500V AC/1 minute
- Material: Frame Nylon 6.6, Black; Actuator PC; Waterproof Rubber Silicone, Black
- Operating Temperature: 1-25°C to +85°C
- Dimensions: Millimetres, Tolerance 0.3mm
Buy the Multicomp 10.740.1 – Reliable Pushbutton Switch for Industrial Applications
Purchase the illuminated pushbutton switch online today and ensure your control systems operate reliably with high durability, waterproof design, and excellent electrical performance. Ideal for industrial automation, this round, panel-mount switch with red LED illumination provides easy operation and robust construction. With a current rating of 20A at 12V DC and high dielectric strength, it guarantees safe and dependable switching in demanding environments. Order now to enhance your control panel assembly with this premium switch from Multicomp.
Buy Multicomp 10.740.1 now and experience unmatched reliability and performance in control panel applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCR13527D2L02?
You can click on the BUY or RFQ button to purchase MCR13527D2L02 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCR13527D2L02?
You can download the MCR13527D2L02 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCR13527D2L02?
MULTICOMP-PRO
