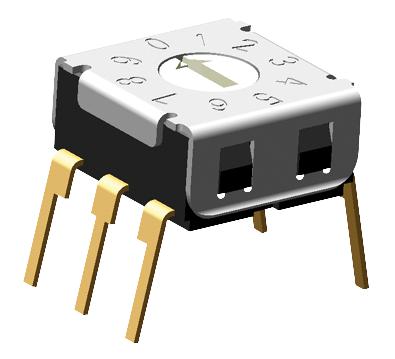

MULTICOMP PRO MCR7H316RAVB Rotary Coded Switch
The rotary coded switch is a durable, high-precision electromechanical component designed for automation and control systems. Featuring a 10-position through-hole design, it operates within -30°C to +80°C, and with a storage temperature range of -40°C to +85°C. The switch is rated for 100mA at 50V DC for non-switching conditions and 25mA at 24V DC during switching. Constructed with nickel silver, stainless steel, and high-temp thermoplastics, it offers excellent mechanical and electrical performance, including low contact resistance, high dielectric strength, and resistance to vibration, shock, humidity, and temperature variations.
MULTICOMP PRO MCR7H316RAVB Rotary Coded Switch Specifications:
- Operating Temperature Range: -30°C to +80°C
- Storage Temperature Range: -40°C to +85°C
- Current Range Non-Switching: 100mA, 50V DC
- Current Range Switching: 25mA, 24V DC
- Type of Actuation: Rotating
- Material: Nickel Silver, Stainless Steel, Thermoplastic, Copper, Gold Plated
- Soldering Temperature: Max 260°C for 180 seconds, Max 350°C manual soldering
- Mechanical Durability: 10,000 cycles
- Shock Resistance: 50G, 11ms, 6 sides
- Vibration Resistance: 10-55-10 Hz, 2 hours each direction
- Electrical Resistance: Max 400mΩ initial, 200mΩ after testing
- Dielectric Strength: 250V AC, no breakdown
- Capacitance: 5pF max at 41MHz +10kHz
- Terminal Material: Copper Gold Plated
- Sealing & Seal Material: Silicone Rubber
- Dimensions: Millimetres - detailed on datasheet
Buy the Buy Multicomp Rotary Coded Switch Part Number MCR7H316RAVB Online
Order the high-quality rotary coded switch online today to ensure reliable performance in automation and control applications. Designed for industrial environments, this switch offers 10 positions, rated for 50V DC at 100mA, and operates within a temperature range of -30°C to +80°C. Made from durable materials including nickel silver and stainless steel, it withstands shock, vibration, and humidity. Easy to install with through-hole terminals, it provides long-lasting, precise switching for your manufacturing or automation needs.
Get Multicomp Rotary Coded Switch MCR7H316RAVB today—built for precision, durability, and reliable switching performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCR7H316RAVB?
You can click on the BUY or RFQ button to purchase MCR7H316RAVB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCR7H316RAVB?
You can download the MCR7H316RAVB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCR7H316RAVB?
MULTICOMP PRO
