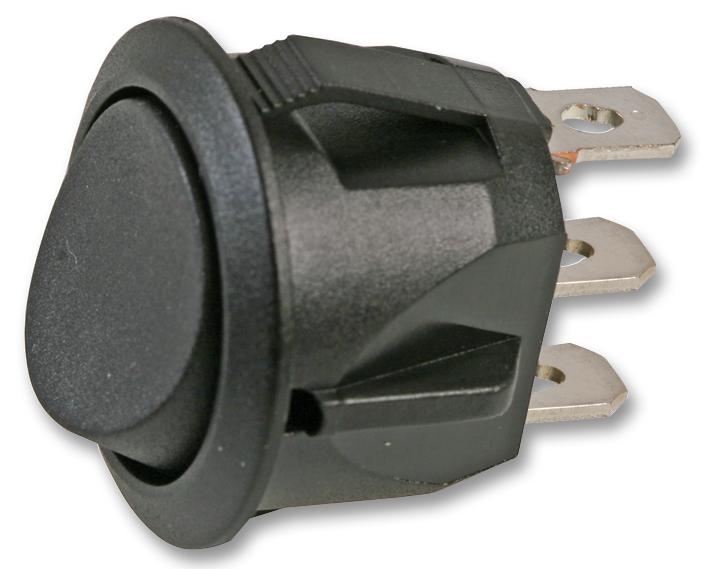

MULTICOMP-PRO MCRC25KKET00B Round Non-Illuminated Rocker Switch
This round non-illuminated rocker switch offers a reliable on-off operation with different switching configurations, including SPST and SPDT. Made with durable polyamide housing and silver alloy contacts, it ensures a long electrical life of 10,000 cycles. Featuring quick connect tabs and robust construction, this switch is suitable for applications requiring a compact, easy-to-mount control component. It operates within -20°C to +85°C ambient temperature and has UL and VDE approvals, making it ideal for industrial or control systems requiring dependable switching performance.
MULTICOMP-PRO MCRC25KKET00B Round Non-Illuminated Rocker Switch Specifications:
- Actuator: Non-illuminated, Round
- Terminal: Quick Connect Tab
- Ambient Temperature: Terminal Side -20°C to +85°C, Actuating Side -20°C to +55°C
- Atmospheric Humidity: 85% Max.
- Actuating Force: 3~6N
- Storage Temperature: -30°C to +80°C Max
- Temperature Rise: 30°C Max. @ Terminal
- Solder Ability: 350°C Max., 3s
- Electrical Rating: 10A, 250V AC/15A, 125V AC
- Electrical Life Endurance: 10,000 cycles
- Contact Resistance: < 20mΩ
- Insulation Resistance: > 1,000MΩ
- Dielectric Strength: > 1,500V/minute
- Housing: Polyamide 6.6, Black
- Contacts: Silver Alloy
- Terminal: Copper or Brass, Silver Plated
- Spring: Chromated Steel Wire
- Movable Arm: Brass, Silver Plated
- Panel Cut Out Thickness: 0.8~3mm
Buy the Multicomp Series Round Non-Illuminated Rocker Switch: MCRC-1-5-KK-E-T00B
Enhance your control panels with this high-quality round non-illuminated rocker switch, offering reliable on-off operation with quick connect tabs for easy wiring. Made with durable polyamide housing and silver-alloy contacts, it withstands temperatures from -20°C to +85°C and has been tested for 10,000 switching cycles. Certified by UL and VDE, this switch is suitable for industrial automation, machinery, and control systems. Order now online to secure this robust, space-saving switch for your application and ensure dependable performance.
Order your Multicomp Series Round Non-Illuminated Rocker Switch today and ensure your control systems operate reliably with this durable and easy-to-mount switch.
