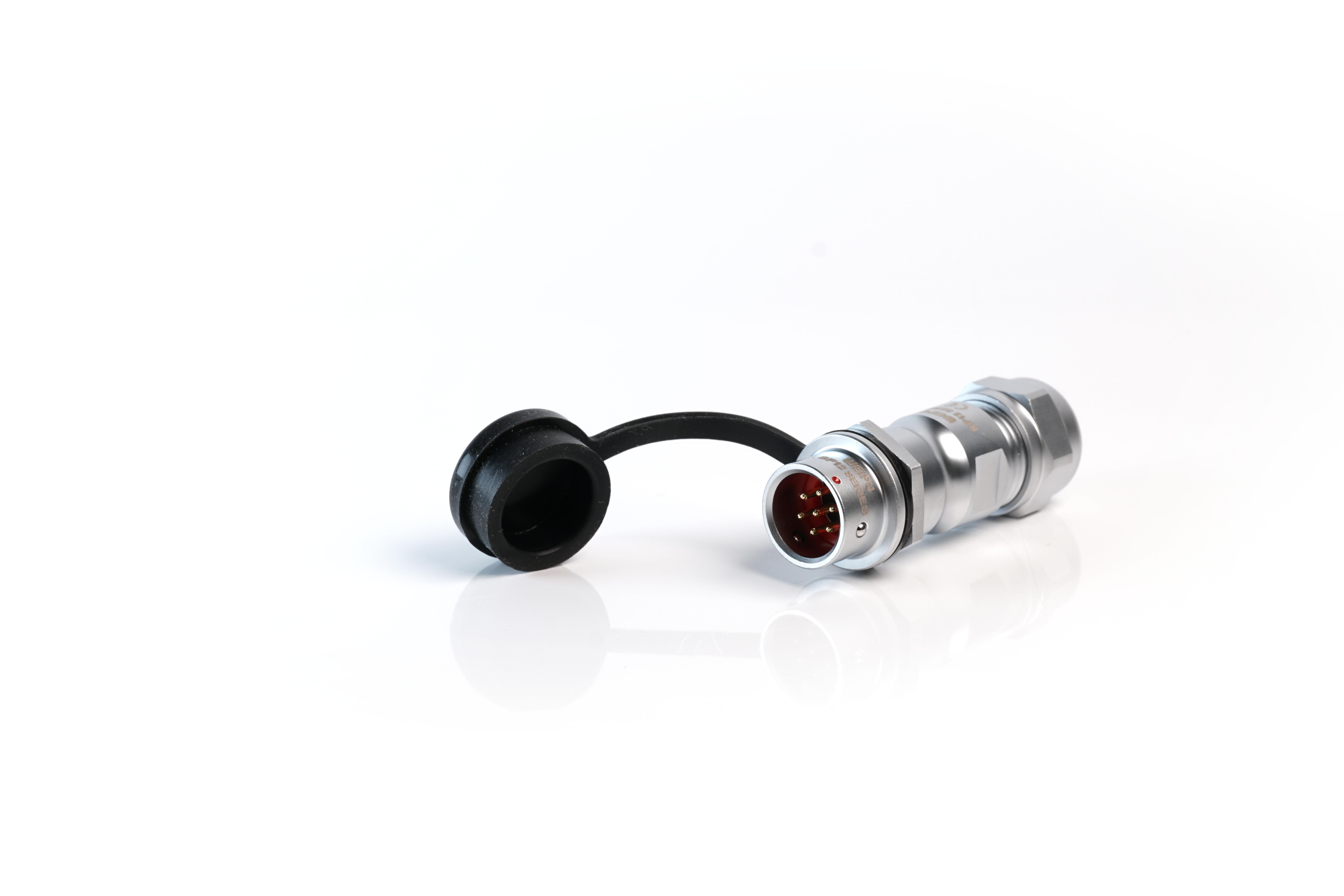

MULTICOMP PRO MP002742 M12 Push-Pull Connector
The MP M12 push-pull connectors are durable, chrome-plated brass with a sleek appearance. Suitable for indoor and outdoor use, they feature IP67 weather sealing, quick push-pull coupling, and solder termination. Available in panel, cable, and inline cable mount configurations, these connectors support 2, 4, 5, and 7 pole options, fitting a 12mm panel cut-out. Designed for automation, process control, medical devices, security systems, and industrial automation applications, they provide reliable electrical and mechanical performance in rugged environments.
MULTICOMP PRO MP002742 M12 Push-Pull Connector Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Contact Resistance: 2.5 mΩ (2 pole), 5 mΩ (4, 5, 7 pole)
- Rated Current: 13 A (2 pole), 5 A (4, 5, 7 pole)
- Rated Voltage: 250 V (2 pole), 200 V, 180 V, 125 V respectively
- Test Voltage: 1500 V or 1000 V for 1 min
- Wire Size: 0.75/18 AWG or 2/14 mm²
- Cable Outer Diameter: 4mm to 6.5mm
- Connector Dimensions: suitable for 12mm panel cut-out
- Connection Type: Solder
- Series: multicomp:ro
Buy the Buy multicomp Series M12 Push-Pull Part Number MP002742 Online
Discover the reliable and durable multicomp Series M12 push-pull connector, perfect for industrial automation, process control, and outdoor applications. Made of chrome-plated brass, it features IP67 weather sealing for protection against dust and water. Quick and easy push-pull coupling ensures fast connection and disconnection, reducing setup time. Available in multiple configurations including panel, cable, and inline mounts with solder termination, supporting 2, 4, 5, and 7 pole options. Suitable for rugged environments requiring secure, waterproof electrical connections.
Order your multicomp Series MP002742 rugged M12 push-pull connector today and ensure reliable, quick connections for industrial automation and outdoor environments.
