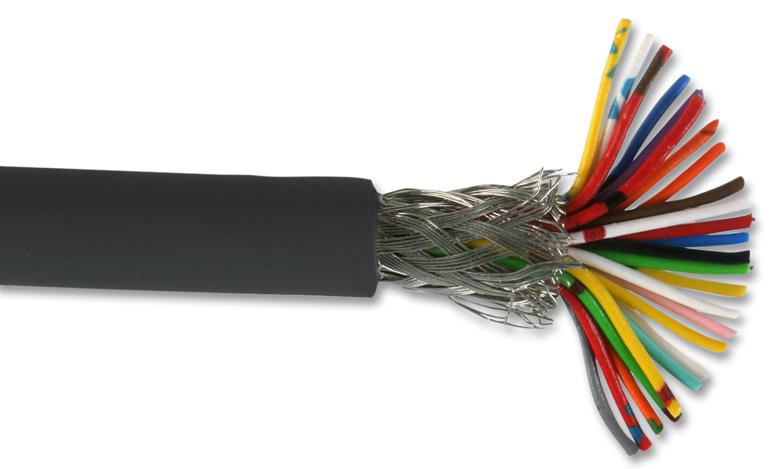

MULTICOMP PRO PP000306 Screened Multicore Cable
This screened multicore cable meets Defence Standard 61-12 Part 4, designed for high-density wiring in electronic equipment and instruments. It features electrolytic annealed tinned copper conductors, PVC insulation, and a black/grey PVC jacket suitable for operating within -10°C to +70°C. The cable has a braid screen with 70% fill factor, withstands a test voltage of 1000V, and is rated for 250V AC rms at 50/60Hz. It is RoHS and AAN compliant, ideal for electronic manufacturing and industrial wiring applications.
MULTICOMP PRO PP000306 Screened Multicore Cable Specifications:
- Number of Cores: 7
- Core Diameter over Cores: 1.2 mm
- Jacket Diameter over Cores: 28 mm
- Jacket Thickness: 2 mm
- Jacket Diameter: 28 mm
- Braid Fill Factor: 70%
- Screen Diameter: 2.3 mm
- Test Voltage: 1000V (core to core, 1 min)
- Conductor Material: Electrolytic Annealed Tinned Copper
- Conductor Size: 7/0.4 mm
- Nominal Core Resistance @ 20°C: 3840/km
- Current Rating per core: 10.25 Amp
- Insulation Resistance: Min. 140 MΩ/km
- Insulation Thickness: 0.2 mm
- Temperature Range: -10°C to +70°C
- Nominal Voltage: 250V AC rms @ 50/60Hz
- Cable Length Options: 25 m, 100 m
- Jacket Material: PVC (Black/Grey, BS6746 Type 6)
- Reel Diameter over Screen: 2.3 mm
Buy the MultiComp Pro PP000306 – Reliable Screened Multicore Cable for Industrial Applications
Order the high-quality screened multicore cable today to ensure durable, reliable connections in electronic and industrial applications. Designed to meet stringent Defence Standards, this cable features tinned copper conductors, PVC insulation, braid shielding, and a robust black/grey PVC jacket ideal for high-density wiring setups. It seamlessly operates within -10°C to +70°C, with a test voltage of 1000V, ensuring safety and durability in demanding environments. Available in various lengths, it’s the perfect choice for professional electronic assembly and industrial wiring tasks.
Buy MultiComp Pro PP000306 now and experience unmatched reliability and performance in high-density electronic wiring.
