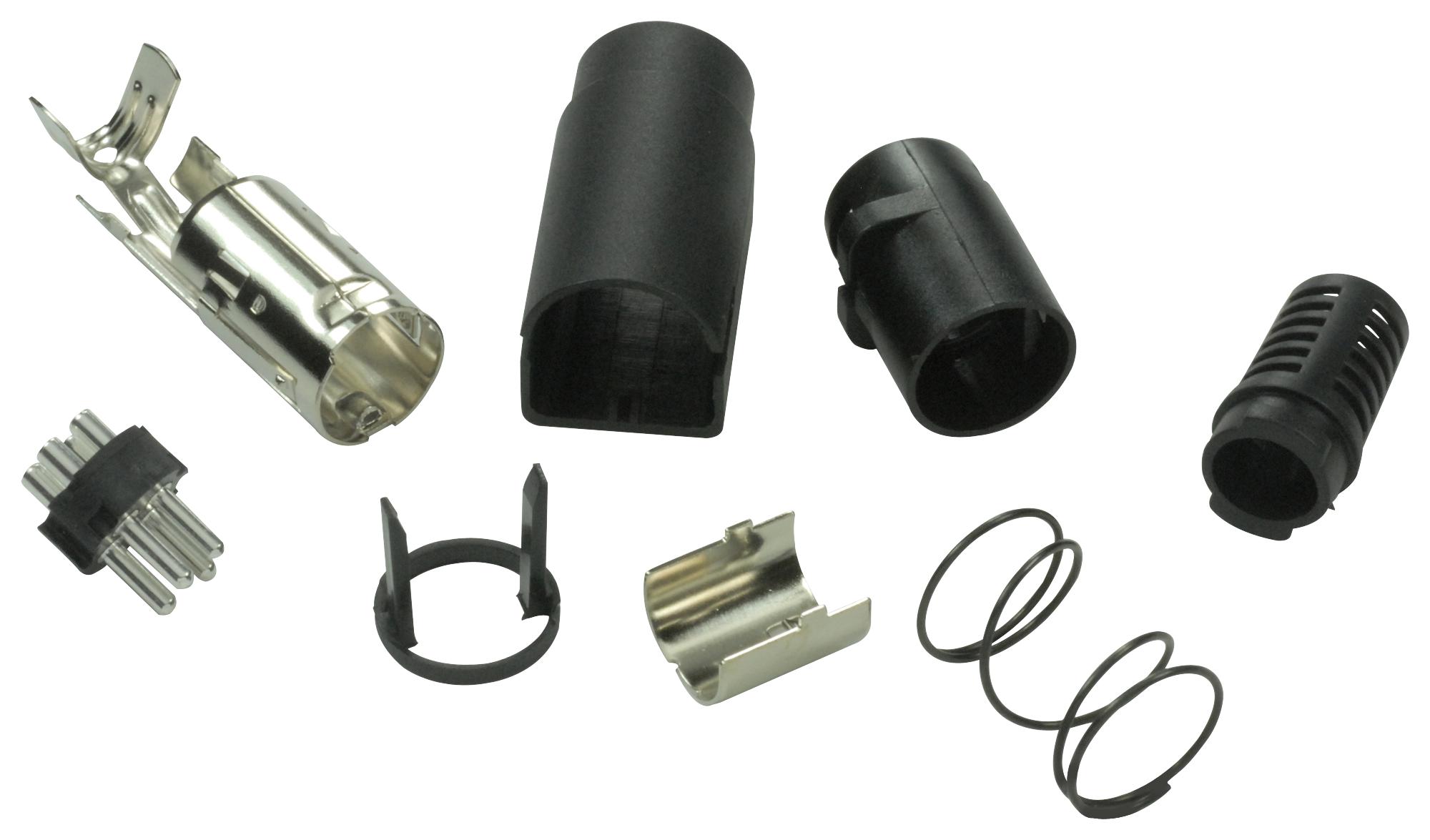

MULTICOMP PRO PM4490002A05 DC Power Connector
The PM4490002-A05 from Multicomp is a reliable 4-pole DC power plug supporting 7.5A at 20V DC or 5A at 30V DC. It has a contact resistance of 30 milliohms and is compatible with wire sizes up to 18 AWG. Designed for industrial, power management, and portable device applications, it ensures secure electrical connections with RoHS compliance. Made with quality materials including brass and nylon, the connector ensures durability and long-term performance. It’s ideal for users seeking high-quality, versatile power connectors that meet safety standards, offering strong insulation and rated voltage withstand capabilities.
MULTICOMP PRO PM4490002A05 DC Power Connector Specifications:
- Maximum Rating: Pin 1, 2, 3, and 4: DC 20V 7.5A or DC 30V 5A
- Maximum Contact Resistance: 30mΩ
- Minimum Insulation Resistance: 250V DC 50MO
- Voltage Withstanding: AC 250V 1 minute
- Applicable Wire Size: AWG 18 maximum
- Material: Brass Silver Plated, Nylon 66, PVC
- Finish: Silver Plated, Black
- Dimensions: 49.22mm length, 32.0mm width, 13.3mm height
- Connector Type: 4-way power plug
- RoHS Compliant, Supported by industry-standard safety ratings
- Rated for industrial, power management, portable devices
- Rated Voltage: 20V or 30V DC
Buy the Multicomp Series 4 Way DC Power Plug: PM4490002-A05
Order the Multicomp 4 Way DC Power Plug online today for secure, high-performance power connections suitable for industrial, portable, and power management devices. Its robust construction with brass and nylon materials ensures durability and stable electrical contact, rated for 7.5A at 20V or 5A at 30V. This RoHS-compliant connector is designed to support wire sizes up to 18 AWG, providing versatile solutions across multiple applications. Simplify your assembly process and ensure safety with a connector that meets industry standards and delivers reliable electrical performance.
Buy Multicomp Series 4 Way DC Power Plug now and experience unmatched reliability and performance in power connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PM4490002A05?
You can click on the BUY or RFQ button to purchase PM4490002A05 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PM4490002A05?
You can download the PM4490002A05 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PM4490002A05?
MULTICOMP PRO
